CABLE 197 RF-050-A-4
ActiveGCT
CBL ASSY MHF1-RPSMA JK-PL 1.969"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 197 RF-050-A-4 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Rear Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 1.969 in |
| Length [x] | 50 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to RP-SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.36 | |
| 10 | $ 9.32 | |||
| 25 | $ 8.78 | |||
| 50 | $ 8.56 | |||
| 100 | $ 8.33 | |||
| 250 | $ 7.43 | |||
| 500 | $ 6.98 | |||
| 1000 | $ 6.17 | |||
Description
General part information
CABLE 197 Series

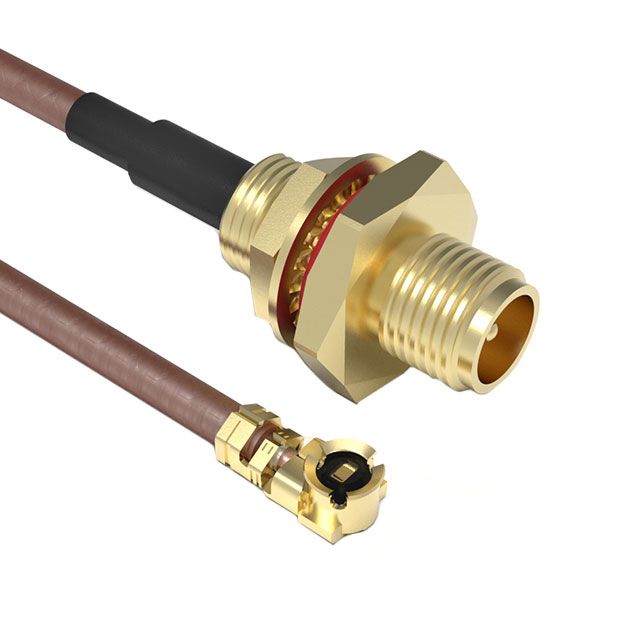

Cable Assembly Coaxial IPEX MHF1 to RP-SMA RG-178 1.969" (50.00mm)
