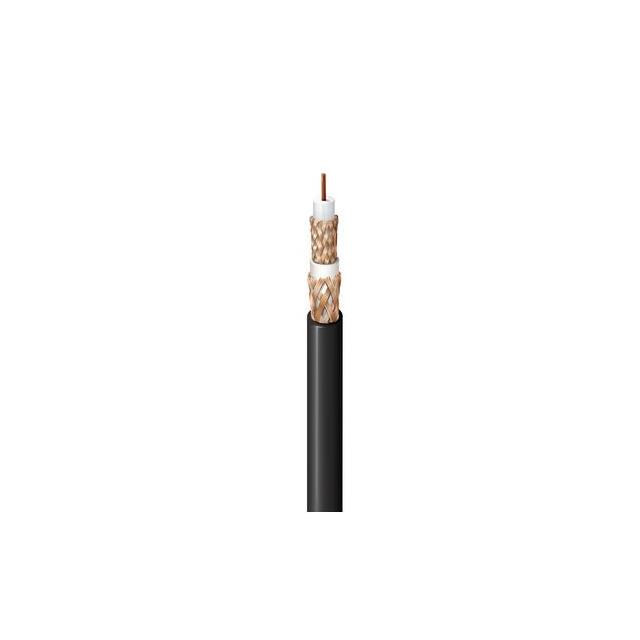

1856A B594000
ActiveBelden Inc.
#20 PE/GIFHDPELDPE PVC TRIAX
Deep-Dive with AI
Search across all available documentation for this part.
1856A B594000
ActiveBelden Inc.
#20 PE/GIFHDPELDPE PVC TRIAX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1856A B594000 |
|---|---|
| Cable Group | RG-59 |
| Cable Type | Triaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 0.145 " |
| Dielectric Diameter [diameter] | 3.68 mm |
| Jacket (Insulation) Diameter [diameter] | 9.14 mm |
| Jacket (Insulation) Diameter [diameter] | 0.36 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 1219.2 m |
| Length | 4000 ft |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -50 °C |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| Usage | Video |
| VoP, Velocity of Propagation | 83 |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1856A Series
Triaxial Cable 20 AWG RG-59 4000.0' (1219.20m)
