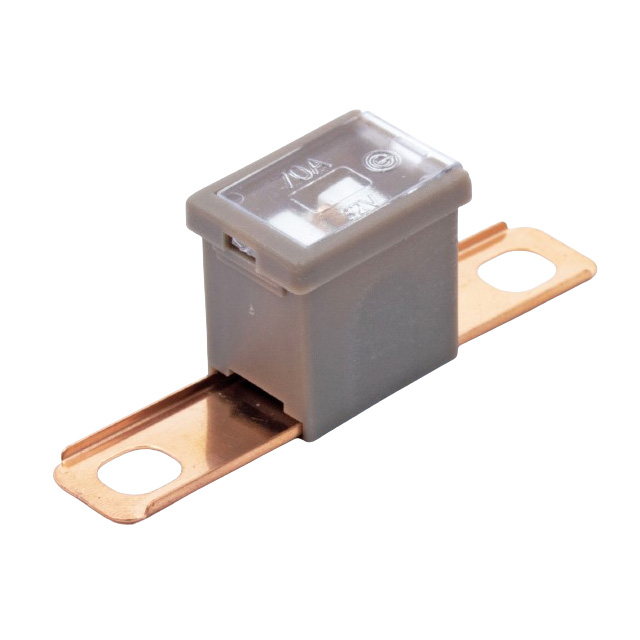

TFLB-70A
ActiveOptiFuse
FUSE AUTO 70A 32VAC 32VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TFLB-70A
ActiveOptiFuse
FUSE AUTO 70A 32VAC 32VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TFLB-70A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Brown |
| Current Rating (Amps) | 70 A |
| Fuse Type | Automotive |
| Mounting Type | Bolt Mount |
| Package / Case | Auto Link |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.898 in |
| Size / Dimension [x] | 22.8 mm |
| Size / Dimension [y] | 0.638 " |
| Size / Dimension [y] | 16.2 mm |
| Size / Dimension [z] | 0.846 in |
| Size / Dimension [z] | 21.5 mm |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.71 | |
| 10 | $ 5.39 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.38 | |||
| 250 | $ 4.32 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 4.04 | |||
Description
General part information
TFLB Series
70 A 32 V AC 32 V DC Fuse Automotive Bolt Mount Auto Link
