DF62WE-9EP-2.2C

Active

Hirose Electric USA, Inc.

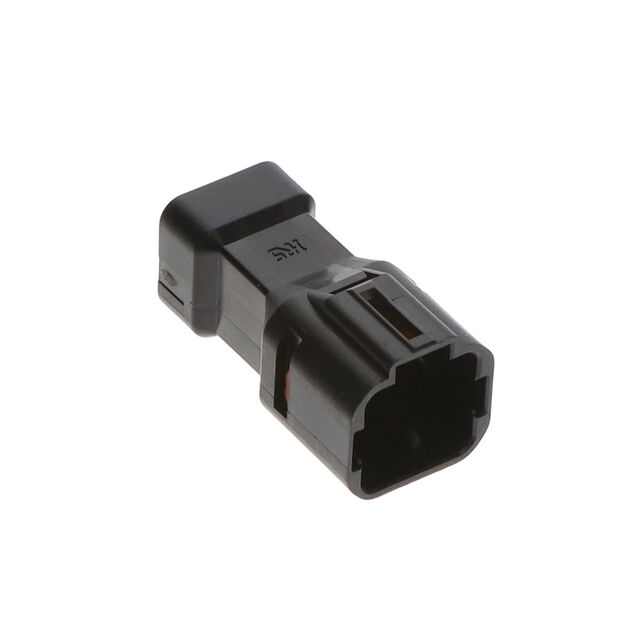

CONN PLUG HOUSING 9POS CRIMP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HOUSING 9POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	DF62WE-9EP-2.2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Water Resistant
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Number of Positions	Connector Type	Color	Row Spacing	Row Spacing	Note	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Fastening Type	Contact Termination	Insulation Material	Contact Type	Features	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. DF62WE-9EP-2.2C	9	Plug	Black	2 mm	0.079 in	Contacts Not Included	3	Free Hanging (In-Line)	0.087 in	2.2 mm	Latch Holder	Crimp	Polybutylene Terephthalate (PBT)	Male Pin	Water Resistant	-35 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)

Technical documentation and resources
