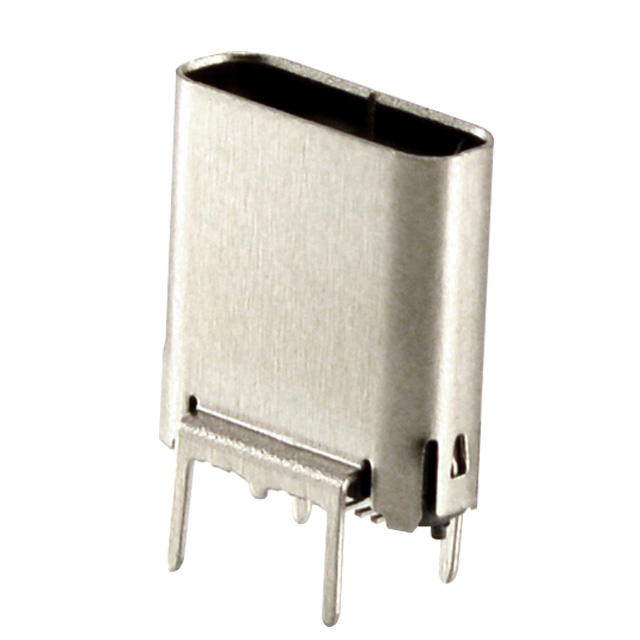

KUSBVX-SMT3-CS-B30TRC
ActiveKycon, Inc.
CONN RCPT USB3.1 TYPEC 4POS DUAL
Deep-Dive with AI
Search across all available documentation for this part.
KUSBVX-SMT3-CS-B30TRC
ActiveKycon, Inc.
CONN RCPT USB3.1 TYPEC 4POS DUAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KUSBVX-SMT3-CS-B30TRC |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Solder Retention, Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.26 | |
| 10 | $ 3.62 | |||
| 25 | $ 3.39 | |||
| 50 | $ 3.23 | |||
| 100 | $ 3.08 | |||
| Digi-Reel® | 1 | $ 4.26 | ||
| 10 | $ 3.62 | |||
| 25 | $ 3.39 | |||
| 50 | $ 3.23 | |||
| 100 | $ 3.08 | |||
| Tape & Reel (TR) | 300 | $ 2.85 | ||
| 600 | $ 2.71 | |||
| 900 | $ 2.64 | |||
| 1500 | $ 2.54 | |||
| 2100 | $ 2.48 | |||
| 3000 | $ 2.42 | |||
Description
General part information
KUSBVX-S Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
