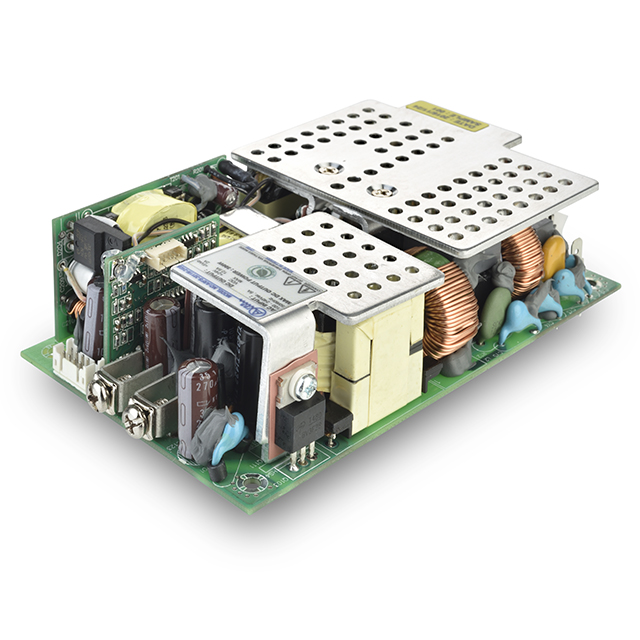

ARFS-3411M-2405
ActiveAras Power Technologies
AC/DC CONVERTER 24V 336W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARFS-3411M-2405
ActiveAras Power Technologies
AC/DC CONVERTER 24V 336W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARFS-3411M-2405 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, UL, CE, cTUVus |
| Current - Output 1 | 14 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 336 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.4 " |
| Size / Dimension [z] | 35.6 mm |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 99.00 | |
Description
General part information
ARFS-3411 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
