Q-030340003001M

Active

Amphenol Custom Cable

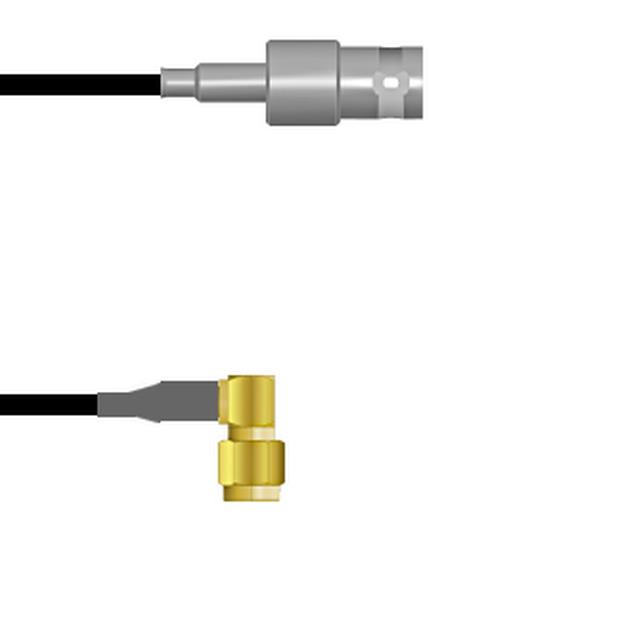

CBL ASSY BNC-SMA JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-030340003001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030340003001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-030340 Series

Part	2nd Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Style	1st Contact Gender	Length	Length	Length	2nd Contact Gender	1st Connector Mounting Type	1st Connector	Features	Overall Impedance	Cable Type	Color	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-030340003001M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	1 m	3.3 ft	39.4 in	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-174	Black
Amphenol Custom Cable Q-030340005.25M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female				Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-316	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-030340003002M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	2 m	6.6 ft	78.7 in	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-174	Black
Amphenol Custom Cable Q-030340005.75M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	750 mm		29.53 "	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-316	Copper
Amphenol Custom Cable Q-030340005072i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	1.8 m	6 ft	72 in	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-316	Copper
Amphenol Custom Cable Q-030340003.25M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female				Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-174	Black	9.843 "	250 mm
Amphenol Custom Cable Q-030340003024i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	609.6 mm		24 "	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-174	Black
Amphenol Custom Cable Q-030340003003i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	76.2 mm		3 in	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-174	Black
Amphenol Custom Cable Q-030340005018i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female				Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-316	Copper		457.2 mm	457.2 mm
Amphenol Custom Cable Q-030340005002M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	BNC to SMA	Female	2 m	6.6 ft	78.7 in	Male	Free Hanging (In-Line)	BNC Jack	Shielded	50 Ohms	RG-316	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.66
		25	$ 88.89
		50	$ 87.12
		100	$ 85.34
		250	$ 83.57

Description

General part information

Q-030340 Series

Cable Assembly Coaxial BNC to SMA RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
