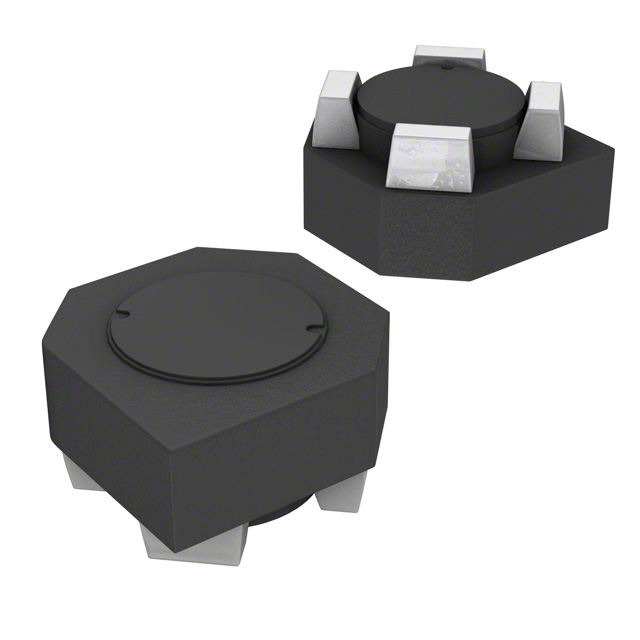

SRU3017-470Y

Active

Bourns Inc.

FIXED IND 47UH 210MA 540MOHM SMD

Search across all available documentation for this part.

Active

Bourns Inc.

FIXED IND 47UH 210MA 540MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	DC Resistance (DCR)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Q @ Freq	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Tolerance	Material - Core	Inductance	Inductance Frequency - Test	Type
Bourns Inc. SRU3017-3R3Y	1.45 A	55 mOhm	Nonstandard	2 mm	0.079 in	Surface Mount	7.96 MHz 8	3.3 mm	3.5 mm	0.13 in	0.138 "	80 MHz	800 mA	125 °C	-40 °C	Shielded	30 %	Ferrite	3.3 µH	100 kHz	Drum Core Wirewound
Bourns Inc. SRU3017-220Y	600 mA	250 mOhm	Nonstandard	2 mm	0.079 in	Surface Mount	2.52 MHz 20	3.3 mm	3.5 mm	0.13 in	0.138 "	30 MHz		125 °C	-40 °C	Shielded	30 %	Ferrite	22 µH	100 kHz	Drum Core Wirewound
Bourns Inc. SRU3017-100Y	0.85 A	120 mOhm	Nonstandard	2 mm	0.079 in	Surface Mount	7.96 MHz 15	3.3 mm	3.5 mm	0.13 in	0.138 "	40 MHz	470 mA	125 °C	-40 °C	Shielded	30 %	Ferrite	10 µH	100 kHz	Drum Core Wirewound
Bourns Inc. SRU3017-470Y	0.21 A		Nonstandard	2 mm	0.079 in	Surface Mount	2.52 MHz 18	3.3 mm	3.5 mm	0.13 in	0.138 "	18 MHz	360 mA	125 °C	-40 °C	Shielded	30 %	Ferrite	47 µH	100 kHz	Drum Core Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	800	$ 0.41

General part information

47 µH Shielded Drum Core, Wirewound Inductor 210 mA 540mOhm Nonstandard
