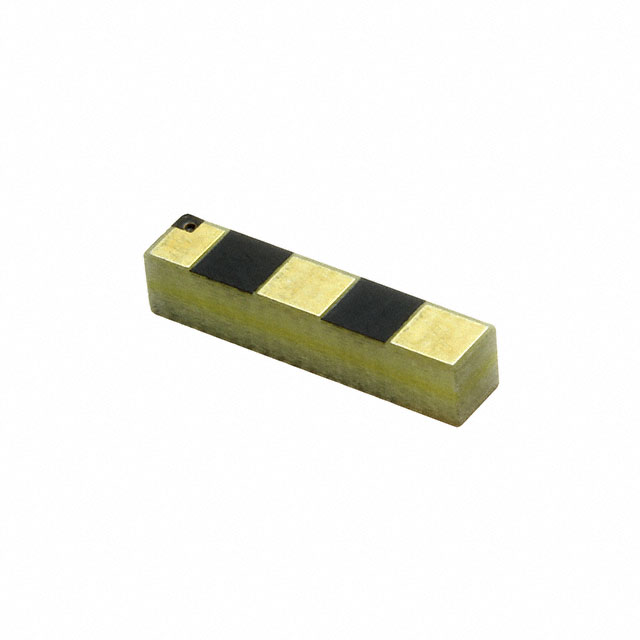

1001013
ActiveKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1001013
ActiveKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001013 |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.2 dBi |
| Height (Max) | 3.3 mm |
| Height (Max) [Max] [z] | 0.13 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.09 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.78 | |||
| Tape & Reel (TR) | 2250 | $ 0.72 | ||
| 6750 | $ 0.70 | |||
| 11250 | $ 0.67 | |||
Description
General part information
1001013 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
