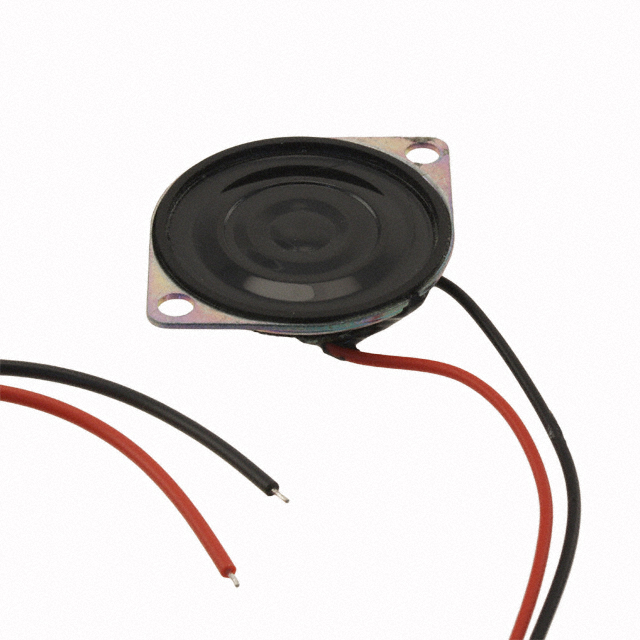

CLS0281MAE-L152

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 87DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 87DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0281MAE-L152

Efficiency - dBA	87 dBA
Efficiency - Testing	1 mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	780 Hz
Frequency Range [Max]	7.5 kHz
Frequency Range [Min]	780 Hz
Height - Seated (Max) [Max] [z]	5.2 mm
Height - Seated (Max) [Max] [z]	0.205 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	4 W
Power - Rated	2 W
Shape	Round
Size / Dimension [diameter]	1.102 in
Size / Dimension [diameter]	28 mm
Technology	Magnetic
Termination	Wire Leads
Type	Low Profile

Part	Technology	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shape	Frequency Range [Min]	Frequency Range [Max]	Material - Magnet	Frequency - Self Resonant	Material - Cone	Power - Rated	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Type	Efficiency - Testing	Type	Port Location	Efficiency - dBA	Termination	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Testing
CUI Devices CLS0231	Magnetic	5.7 mm	0.224 in	Round	520 Hz	18 kHz	Nd-Fe-B	650 Hz	Paper	1 W	8 Ohms	23 mm	0.906 "	Sound Pressure Level (SPL)	1 mW/100mm	Low Profile	Top	89 dBA	Solder Pads	1.5 W
CUI Devices CLS0301-L152	Magnetic			Round	550 Hz	20 kHz	Nd-Fe-B	550 Hz	Paper	1 W	8 Ohms	30 mm	1.181 inches	Sound Pressure Level (SPL)	1 mW/100mm	Low Profile	Top	86 dBA	Wire Leads	2 W	5.9 mm	0.232 "
CUI Devices CLS0301MP-1	Magnetic			Round	500 Hz	6 kHz	Nd-Fe-B	500 Hz	Polyester Polyethylene Terephthalate (PET)	200 mW	8 Ohms	30 mm	1.181 inches	Sound Pressure Level (SPL)		Low Profile	Top	78 dBA	PC Pins		3.9 mm	0.154 in	200mW/500mm
CUI Devices CLS0231-L152	Magnetic	5.7 mm	0.224 in	Round	520 Hz	18 kHz	Nd-Fe-B	650 Hz	Paper	1 W	8 Ohms	23 mm	0.906 "	Sound Pressure Level (SPL)	1 mW/100mm	Low Profile	Top	89 dBA	Wire Leads	1.5 W
CUI Devices CLS0281MAE-L152	Magnetic			Round	780 Hz	7.5 kHz	Nd-Fe-B	780 Hz	Polyester Polyethylene Terephthalate (PET)	2 W	8 Ohms	28 mm	1.102 in	Sound Pressure Level (SPL)	1 mW/100mm	Low Profile	Top	87 dBA	Wire Leads	4 W	5.2 mm	0.205 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 2 W 780 Hz ~ 7.5 kHz Top Round
