C6KH,BK

Active

Serpac

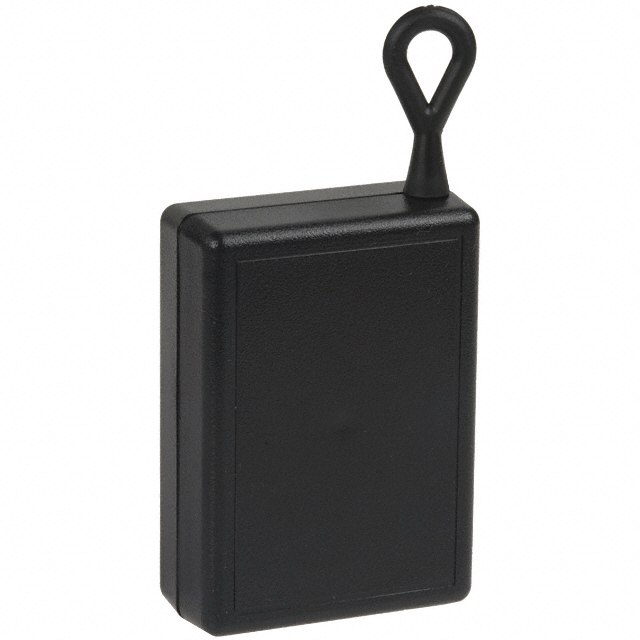

BOX ABS BLACK 2.26"L X 1.61"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 2.26"L X 1.61"W

Technical Specifications

Parameters and characteristics for this part

Specification	C6KH,BK

Area (L x W) [custom]	3.64 in²
Area (L x W) [custom]	23.5 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Key Holder
Height [z]	19.05 mm
Height [z]	0.75 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	57.4 mm
Size / Dimension [x]	2.26 "
Size / Dimension [y]	40.89 mm
Size / Dimension [y]	1.61 "
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.032 lb
Weight	14.51 g

Part	Features	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Material	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Color	Height [z]	Height [z]	Ratings	Container Type
Serpac C6KH,AL	Key Holder	0.032 lb	14.51 g	40.89 mm	57.4 mm	1.61 "	2.26 "	Hand Held Split Sides	Plastic ABS	1.52 mm	0.06 in	23.5 cm²	3.64 in²	UL94 HB	Almond	19.05 mm	0.75 in	IP40	Box
Serpac C6KH,BK	Key Holder	0.032 lb	14.51 g	40.89 mm	57.4 mm	1.61 "	2.26 "	Hand Held Split Sides	Plastic ABS	1.52 mm	0.06 in	23.5 cm²	3.64 in²	UL94 HB	Black	19.05 mm	0.75 in	IP40	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 2.260" L x 1.610" W (57.40mm x 40.89mm) X 0.750" (19.05mm)

Technical documentation and resources

No documents available
