PTGL05AS270K6B51B0
ObsoleteMurata Power Solutions Inc.

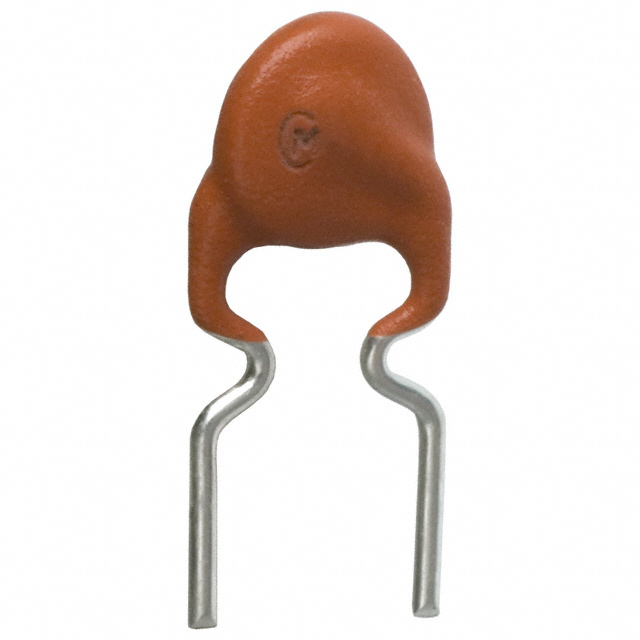

PTC THERMISTOR, 27OHM, THROUGH HOLE MOUNT, RADIAL LEADED
Deep-Dive with AI
Search across all available documentation for this part.
PTGL05AS270K6B51B0
ObsoleteMurata Power Solutions Inc.
PTC THERMISTOR, 27OHM, THROUGH HOLE MOUNT, RADIAL LEADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTGL05AS270K6B51B0 |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) [Max] | 134 mA |
| Current - Max [Max] | 1 A |
| Current - Trip (It) | 178 mA |
| Height - Seated (Max) [Max] | 0.413 in |
| Height - Seated (Max) [Max] | 10.5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 27 Ohms |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [z] | 4.5 mm |
| Size / Dimension [z] | 0.177 in |
| Type | Ceramic |
| Voltage - Max [Max] | 140 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PTGL05AS Series
Ceramic PTC Resettable Fuse 140V 134 mA Ih Through Hole Radial, Disc
