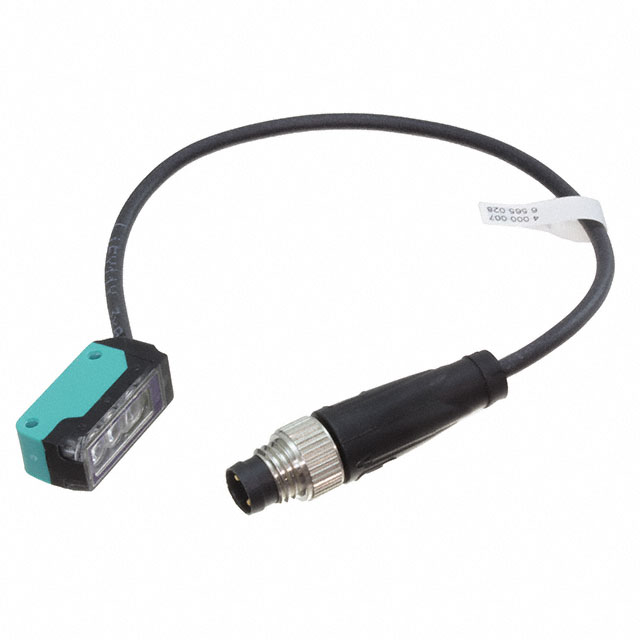

OBT30-R2-E2-0.2M-V3
ObsoletePEPPERL+FUCHS
PHOTO SEN 1-30MM BACK SUPPRESS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OBT30-R2-E2-0.2M-V3 |
|---|---|
| Cable Length | 0.2 m |
| Cable Length | 7.87 in |
| Connection Method | Cable with Connector |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP - Light-ON |
| Response Time | 600 µs |
| Sensing Distance [Max] | 30 mm |
| Sensing Distance [Max] | 1.181 in |
| Sensing Distance [Min] | 0.039 in |
| Sensing Distance [Min] | 1 mm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OBT30 Series
Diffuse Optical Sensor 0.039" ~ 1.181" (1mm ~ 30mm) PNP - Light-ON
