Q-3A0100001048I

Active

Amphenol Custom Cable

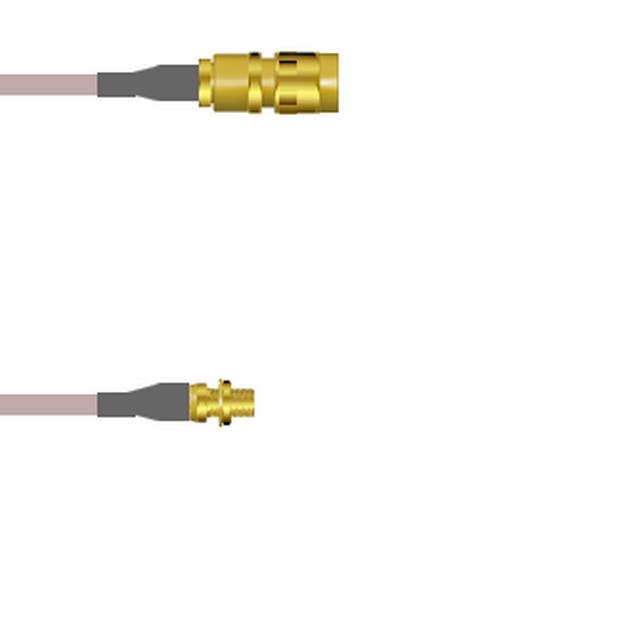

COAX CABLE SMA TO MCX 4'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO MCX 4'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3A0100001048I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to MCX

Part	2nd Contact Gender	2nd Connector	2nd Connector Mounting Feature	Cable Impedance	2nd Connector Mounting Type	Overall Impedance	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Features	Length	Length	Color	Style	1st Connector	Connector Impedance	Length
Amphenol Custom Cable Q-3A01000010.5M	Female	MCX Socket	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	50 Ohms	RG-178	Free Hanging (In-Line)	3 GHz	Male	Shielded	50 cm	19.69 "	Copper	SMA to MCX	SMA Plug	50 Ohms
Amphenol Custom Cable Q-3A0100001048I	Female	MCX Socket	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	50 Ohms	RG-178	Free Hanging (In-Line)	3 GHz	Male	Shielded	1200 mm	48 in	Copper	SMA to MCX	SMA Plug	50 Ohms	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MCX RG-178 48.0" (1.2m) 4.0'
