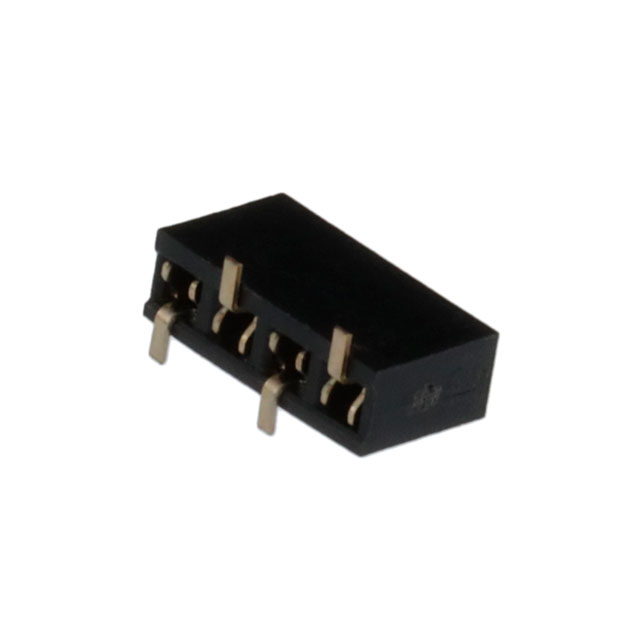

FM20C04VBNN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, SINGLE ROW, 2.0

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, SINGLE ROW, 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	FM20C04VBNN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Ingress Protection	Insulation Material	Fastening Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Termination	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Mounting Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Insulation Color
METZ CONNECT USA Inc. FM20C04VBDN00G7	2	Receptacle	-40 °C	105 ░C	Female Socket	IP00	Polyamide (PA6) Nylon 6	Push-Pull	All	0.079 in	2 mm	Square	Solder	4.3 mm	0.169 "	8	Gold	Surface Mount	Copper Alloy	0.079 in	2 mm	Flash	Black
METZ CONNECT USA Inc. FM20C04VBNN	1	Receptacle	-40 °C	105 ░C	Female Socket		Polyamide (PA6) Nylon 6	Push-Pull	All	0.079 in	2 mm	Square	Solder	4.5 mm	0.177 in	4	Gold	Surface Mount	Copper Alloy			Flash	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
