76053-00000400-01

Active

Honeywell Sensing and Productivity Solutions

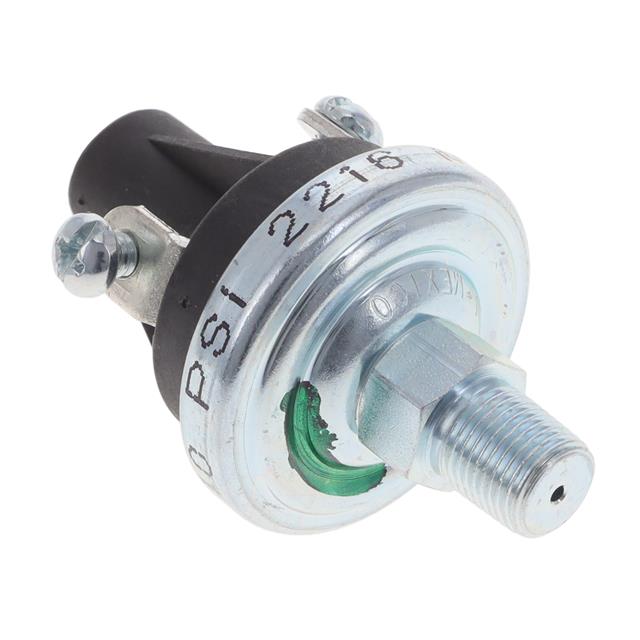

SWITCH 50PSI SPST-NO 1/8"NPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

76053-00000400-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH 50PSI SPST-NO 1/8"NPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	76053-00000400-01

Maximum Pressure [Max]	500 PSI
Maximum Pressure [Max]	3447.38 kPa
Operating Pressure [Max]	50 PSI
Operating Pressure [Max]	344.74 kPa
Operating Pressure [Min]	25 PSI
Operating Pressure [Min]	172.37 kPa
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-40 °C
Output Type	SPST-NO
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Switch
Termination Style	Screw Terminal

76053 Series

Part	Output Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Pressure Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Termination Style	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Applications
Honeywell Sensing and Productivity Solutions 76053-B00000400-01	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-00000500-01
Honeywell Sensing and Productivity Solutions 76053-00000450-01	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-00000350-05	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-00000250-05	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-00000350-01	SPST-NO					Switch	Cylinder	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male	35 PSI	241.32 kPa	Industrial Automation
Honeywell Sensing and Productivity Solutions 76053-B00000370-15	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-00000400-01	SPST-NO	25 PSI	50 PSI	172.37 kPa	344.74 kPa	Switch	Cylinder Threaded	-40 °C	121 °C	500 PSI	3447.38 kPa	Threaded	Screw Terminal	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 76053-B00000300-01

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.19
		5	$ 60.19

Description

General part information

76053 Series

Pressure Sensor 25PSI ~ 50PSI (172.37kPa ~ 344.74kPa) Switch Male - 1/8" (3.18mm) NPT Cylinder, Threaded
