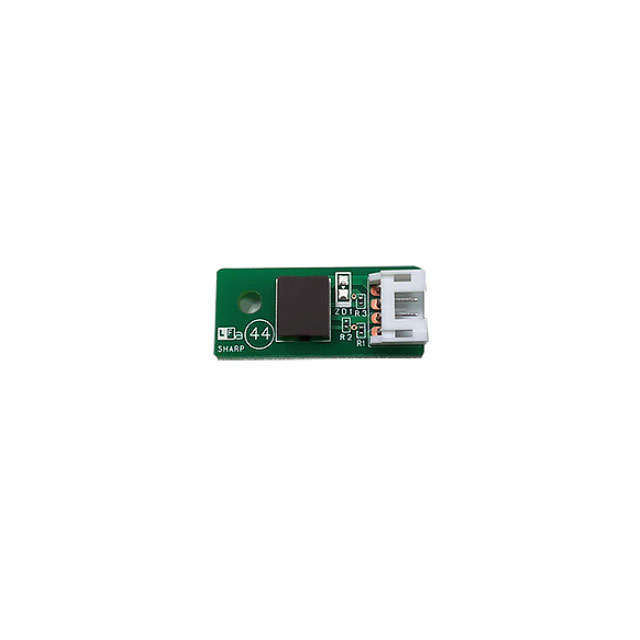

A1DU5P2CP006B
ActiveSHARP/Socle Technology
TEMPERATURE AND RH DETECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1DU5P2CP006B
ActiveSHARP/Socle Technology
TEMPERATURE AND RH DETECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1DU5P2CP006B |
|---|---|
| Accuracy | 5 % RH |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 10 b |
| Output Type | I2C |
| Package / Case | IoT Finished Device |
| Sensor Type | Temperature, Humidity |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.06 | |
| 5 | $ 5.05 | |||
| 10 | $ 5.05 | |||
| 25 | $ 5.05 | |||
| 40 | $ 5.04 | |||
| 80 | $ 5.04 | |||
| 440 | $ 5.03 | |||
| 945 | $ 5.03 | |||
Description
General part information
A1DU5 Series
Humidity, Temperature 0 ~ 100% RH I2C ±5% RH Chassis Mount
Documents
Technical documentation and resources
