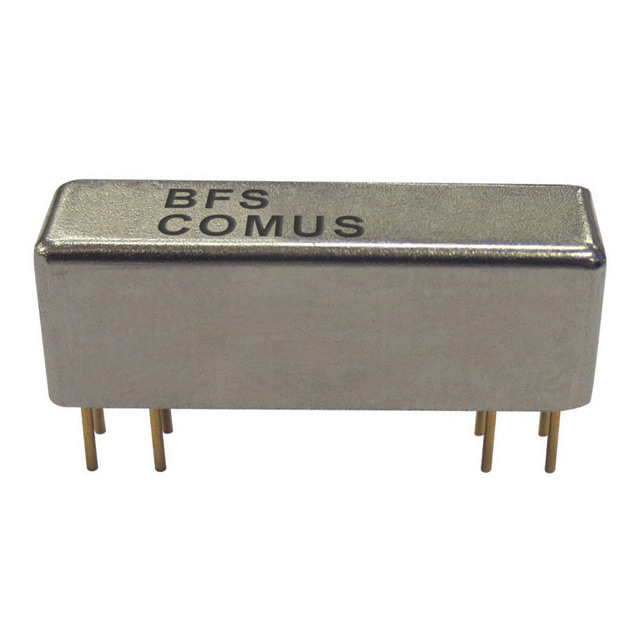

BFS-1A-12E
ActiveComus International
RELAY REED SPST .5A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFS-1A-12E |
|---|---|
| Coil Resistance | 1.5 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Ruthenium (Ru) |
| Contact Rating (Current) | 0.5 A |
| Features | Electrostatic Shield |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.17 | |
| 10 | $ 7.66 | |||
| 25 | $ 6.81 | |||
Description
General part information
BFS-1 Series
RELAY REED SPST .5A 12V
