121716
ActiveWakefield-Vette

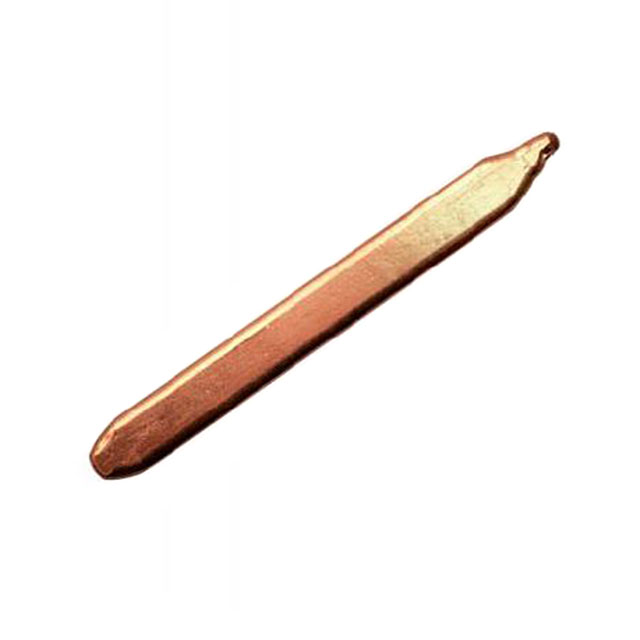

FLAT HEAT PIPE 8.4X2.5X100MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
121716
ActiveWakefield-Vette
FLAT HEAT PIPE 8.4X2.5X100MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 121716 |
|---|---|
| Attachment Method | Epoxy, Solder |
| Height [z] | 2.5 mm |
| Height [z] | 0.098 in |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Material | Copper |
| Power - Cooling | 35 W |
| Shape | Flat |
| Type | Heat Pipe |
| Wick Type | Sintered |
| Width [x] | 8.4 mm |
| Width [x] | 0.33 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 5.85 | |
| 300 | $ 5.46 | |||
| 500 | $ 5.07 | |||
| 1000 | $ 4.97 | |||
Description
General part information
121716 Series
Heat Pipe Flat Copper Sintered
