Technical Specifications
Parameters and characteristics for this part
| Specification | FBO16-12N |
|---|---|
| Current - Average Rectified (Io) | 22 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | i4-Pac™-5 |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.43 V |
| Voltage - Peak Reverse (Max) [Max] | 1.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.63 | |
| 25 | $ 10.50 | |||
| 100 | $ 9.74 | |||
| 250 | $ 8.92 | |||
| 500 | $ 8.92 | |||
Description
General part information
FBO16 Series

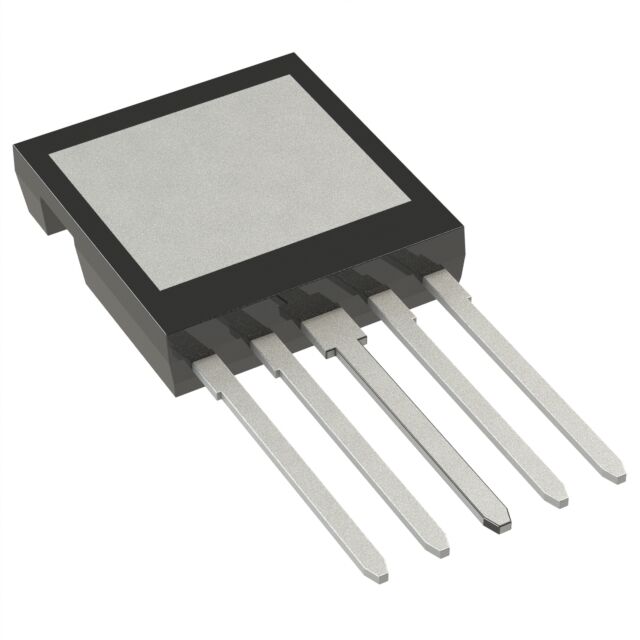

Bridge Rectifier Single Phase Standard 1.2 kV Through Hole ISOPLUS i4-PAC™
Documents
Technical documentation and resources
