6STD09PCM99B30X

Active

Amphenol CONEC

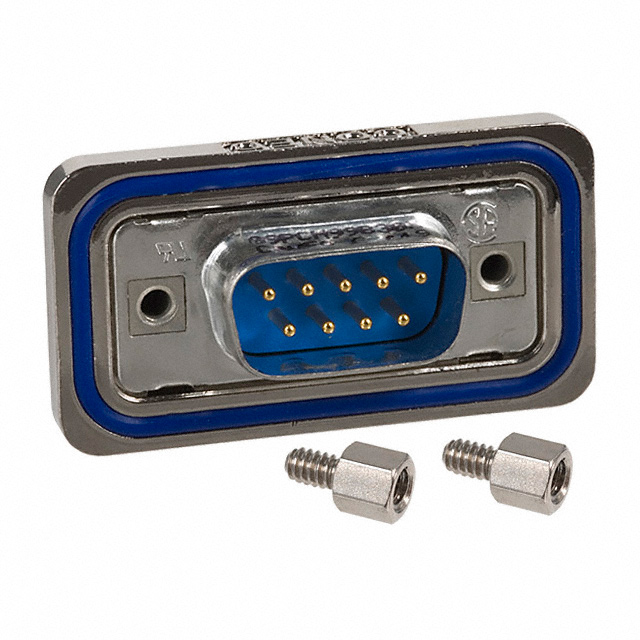

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6STD09PCM99B30X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6STD09PCM99B30X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge	20 AWG

6STD09P Series

Part	Termination	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Type	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Connector Style	Voltage Rating	Connector Type	Shell Material, Finish	Number of Rows	Contact Material	Flange Feature	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Color	Dielectric Material	Wire Gauge	Contact Finish Thickness	Shell Material, Finish [custom]	Shell Material, Finish [custom]
Amphenol CONEC 6STD09PAU99R40X	Solder	Gold	DE E	1	8 çin	0.203 çm	Board Lock Grounding Indents Mounting Brackets	Signal	9	7.5 A	UL94 V-0	D-Sub	125 VDC	Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (4-40) Mating Side	0.276 in	7 mm	-25 °C	105 ░C	IP67 - Dust Tight Waterproof	Board Edge Right Angle Through Hole	Black	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 6STD09PAT99B30X														Male Pins Plug
Amphenol CONEC 6STD09PAT99S40X	Solder	Gold	DE E	1	8 çin	0.203 çm	Board Lock Grounding Indents Mounting Brackets	Signal	9	7.5 A	UL94 V-0	D-Sub	125 VDC	Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (4-40) Mating Side	0.189 in	4.8 mm	-25 °C	105 ░C	IP67 - Dust Tight Waterproof	Board Edge Right Angle Through Hole	Black	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 6STD09PAM99B20X		Gold	DE E	1			Grounding Indents	Signal	9	7.5 A	UL94 V-0	D-Sub	125 VDC	Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (M3) Mating Side			-25 °C	105 ░C	IP67 - Dust Tight Waterproof		Black	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Flash
Amphenol CONEC 6STD09PCR99E20X	Solder	Gold	DE E	1	30 Áin	0.76 Ám	Board Lock Grounding Indents	Signal	9	5 A	UL94 V-0	D-Sub		Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (4-40) Mating Side			-25 °C	105 ░C	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Black	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 6STD09PAT99S20X	Solder	Gold	DE E	1			Grounding Indents Mounting Brackets	Signal	9	7.5 A	UL94 V-0	D-Sub	125 VDC	Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (4-40) Mating Side	0.189 in	4.8 mm	-25 °C	105 ░C	IP67 - Dust Tight Waterproof	Board Edge Right Angle Through Hole	Black	Polybutylene Terephthalate (PBT) Glass Filled		Flash
Amphenol CONEC 6STD09PCM99B70X		Gold	DE E	1			Grounding Indents	Signal	9			D-Sub		Male Pins Plug		2		4-40			-25 °C	105 ░C	IP67 - Dust Tight Waterproof			Polyester Glass Filled			Brass	Tin Plated
Amphenol CONEC 6STD09PCM99B30X		Gold	DE E	1	30 Áin	0.76 Ám		Signal	9	5 A	UL94 V-0	D-Sub		Male Pins Plug	Copper Alloy Tin Plated	2	Copper Alloy	Female Screwlock (4-40) Mating Side			-25 °C	105 ░C	IP67 - Dust Tight Waterproof		Black	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG
