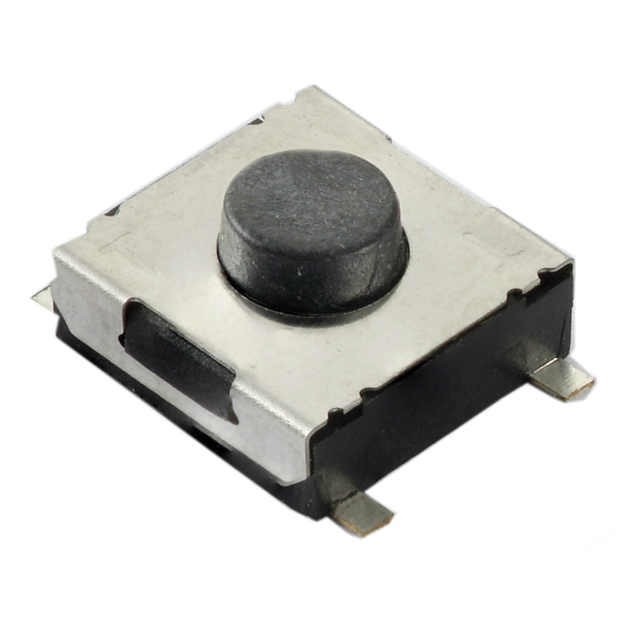

222CMVBAR
ActiveTusonix a Subsidiary of CTS Electronic Components
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
222CMVBAR
ActiveTusonix a Subsidiary of CTS Electronic Components
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 222CMVBAR |
|---|---|
| Actuator Height off PCB, Vertical | 3.4 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Tactile Feedback |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.2 mm |
| Outline [y] | 6.2 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.24 | ||
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| Tape & Reel (TR) | 1300 | $ 0.14 | ||
| 2600 | $ 0.13 | |||
| 3900 | $ 0.13 | |||
| 6500 | $ 0.12 | |||
| 9100 | $ 0.12 | |||
| 13000 | $ 0.12 | |||
| 32500 | $ 0.11 | |||
| 65000 | $ 0.11 | |||
Description
General part information
222CMV Series
Tactile Switch SPST-NO Top Actuated Surface Mount
