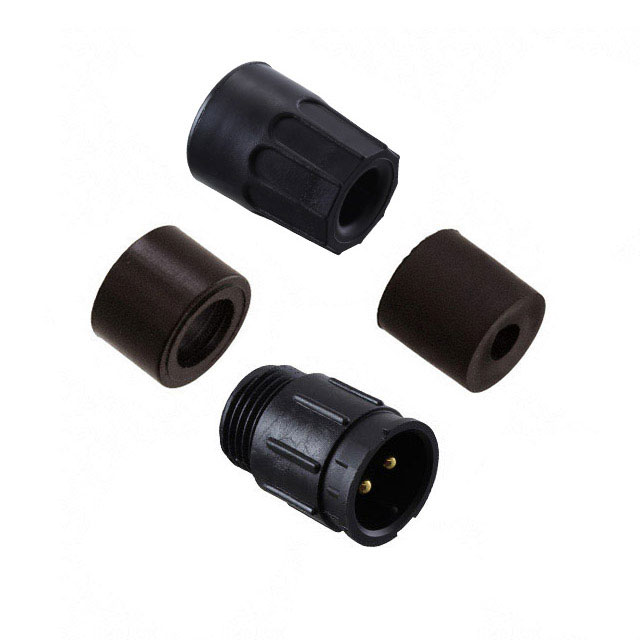

5182-2PG-321

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5182-2PG-321

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5182-2PG-321

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.21 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5182-2PG Series

Part	Features	Number of Positions	Contact Material	Primary Material	Ingress Protection	Contact Finish - Mating	Color	Backshell Material, Plating	Voltage Rating	Orientation	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5182-2PG-318	Backshell	2	Brass	Plastic	Weathertight	Gold	Black	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Male Pins Receptacle	Free Hanging (In-Line)	Unshielded	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-2PG-330	Backshell	2	Brass	Plastic	Weathertight	Gold	Black	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Male Pins Receptacle	Free Hanging (In-Line)	Unshielded					7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 5182-2PG-3DC	Backshell	2	Brass	Plastic	Weathertight	Gold	Black	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Male Pins Receptacle	Free Hanging (In-Line)	Unshielded
Conxall/Switchcraft 5182-2PG-530	Backshell Cable Clamp	2	Brass	Plastic	Weathertight	Gold	Black	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Male Pins Receptacle	Free Hanging (In-Line)	Unshielded					7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 5182-2PG-321	Backshell	2	Brass	Plastic	Weathertight	Gold	Black	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Male Pins Receptacle	Free Hanging (In-Line)	Unshielded					5.33 mm	0.23 in		0.21 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.22
		10	$ 5.60
		25	$ 5.27
		50	$ 5.14
		100	$ 5.00
		300	$ 4.76

Description

General part information

5182-2PG Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup
