103956-6

Active

TE Connectivity Raychem Cable Protection

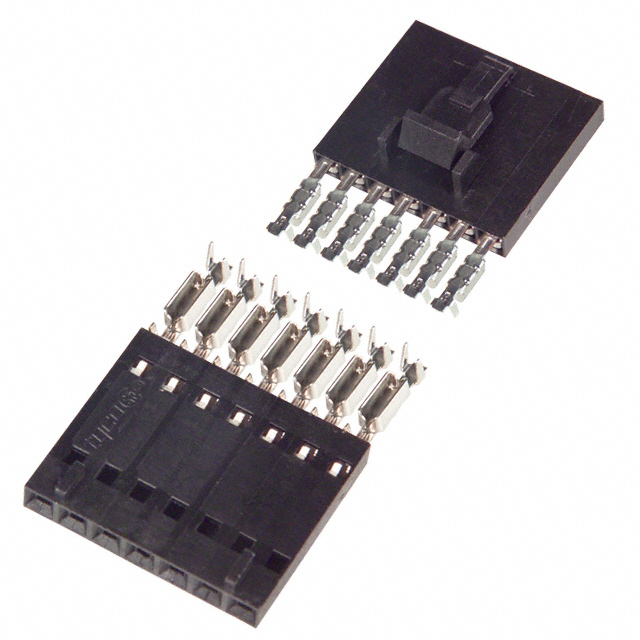

(103956-6) 2X7 MTE RCPT SR LATCH .100CL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

(103956-6) 2X7 MTE RCPT SR LATCH .100CL

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Mounting Type	Connector Type	Cable Termination	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions
TE Connectivity Raychem Cable Protection 5-103956-4	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin	Discrete	1	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 1-103956-6	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin	Discrete	1	2.54 mm	0.1 in	6
TE Connectivity Raychem Cable Protection 5-103956-3	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin	Discrete	1	2.54 mm	0.1 in	4
TE Connectivity Raychem Cable Protection 1-103956-1	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin-Lead	Discrete	1	2.54 mm	0.1 in	12
TE Connectivity Raychem Cable Protection 103956-1	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin-Lead	Discrete	1	2.54 mm	0.1 in	2
TE Connectivity Raychem Cable Protection 1-103956-5	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin	Discrete	1	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 103956-6	Latch Lock	Free Hanging (In-Line)	Receptacle	IDC	Female Socket	22 AWG	26 AWG	Black	2.54 µm	100 µin	Tin-Lead	Discrete	1	2.54 mm	0.1 in	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	630	$ 2.74

General part information

7 Position Rectangular Receptacle Connector IDC Tin-Lead 22-26 AWG
