1241.2903.002

Obsolete

SCHURTER Inc.

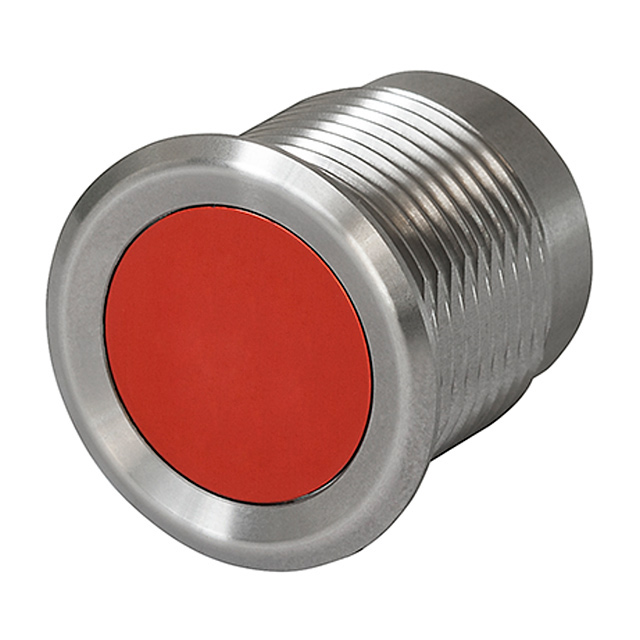

SWITCH PUSH SPST-NO 100MA 42V RD

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V RD

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2903.002

Actuator Marking	B (Embossed)
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	100 mA
Electrical Life	20000000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	20000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	21.15 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Piezo
Voltage Rating - AC	42 V
Voltage Rating - DC	60 VDC

Part	Mechanical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Ingress Protection	Circuit	Electrical Life	Voltage Rating - DC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Features	Actuator Type	Switch Function	Actuator Marking	Color - Actuator/Cap
SCHURTER Inc. 1241.2903.002	20000000 Cycles	21.15 mm	100 mA	Wire Leads	IP67 - Dust Tight Waterproof	SPST-NO	20000000 Cycles	60 VDC	Anti-Vandal Piezo	-20 C	60 °C	42 V	Panel Mount Front	Epoxy Sealed Terminals	Button Flush Round	Off-Mom	B (Embossed)	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.70

General part information

Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front
