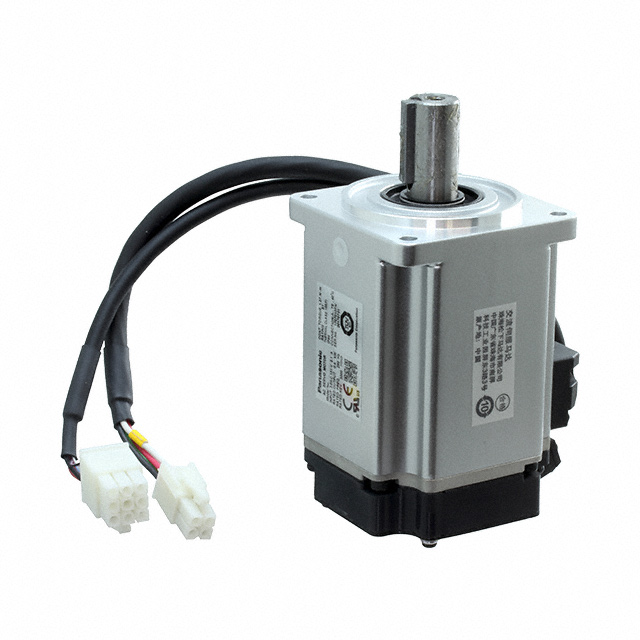

MSMF042L1U2

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Search across all available documentation for this part.

MSMF042L1U2

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSMF042L1U2

Approval Agency	CE, cURus, cULus
Diameter - Shaft [diameter]	14 mm
Diameter - Shaft [diameter]	0.551 in
Encoder Type	Absolute
Features	Key
Function	Servomotor
Length - Shaft and Bearing [x]	30 mm
Length - Shaft and Bearing [x]	1.181 in
Mounting Hole Spacing	70 mm
Mounting Hole Spacing	2.756 in
Power - Rated	400 W
RPM	3000 RPM
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Termination Style	Cable with Connector
Torque - Rated (oz-in / mNm)	1270 mNm
Torque - Rated (oz-in / mNm)	179.9 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	1.7 kg
Weight	3.7 lbs

MSMF042 Series

Part	Function	Features	Voltage - Rated	Approval Agency	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	RPM	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Encoder Type	Power - Rated	Weight	Weight
Panasonic Industrial Automation Sales MSMF042L1V1	Servomotor	Brake Key Oil Seal	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1T1	Servomotor	Brake Key	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1S2	Servomotor	Key	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Cable with Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1C1	Servomotor	Oil Seal	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1V2	Servomotor	Brake Key Oil Seal	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Cable with Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1B2	Servomotor	Brake	200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Cable with Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1A2	Servomotor		200 VAC	CE cULus cURus	AC Motor	0.575 in	14.6 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Cable with Connector	Absolute	400 W
Panasonic Industrial Automation Sales MSMF042L1U2	Servomotor	Key	200 VAC	CE cULus cURus	AC Motor	0.551 in	14 mm	70 mm	2.756 in	3000 RPM	30 mm	1.181 in	1270 mNm	179.9 oz-in	2.362 in	2.362 in	60 mm	60 mm	Cable with Connector	Absolute	400 W	1.7 kg	3.7 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 641.68
		10	$ 583.35

Description

General part information

MSMF042 Series

AC Motor Servomotor 3000 RPM 400W Absolute 200VAC
