E2008S.41.10
ActivePrysmian Group

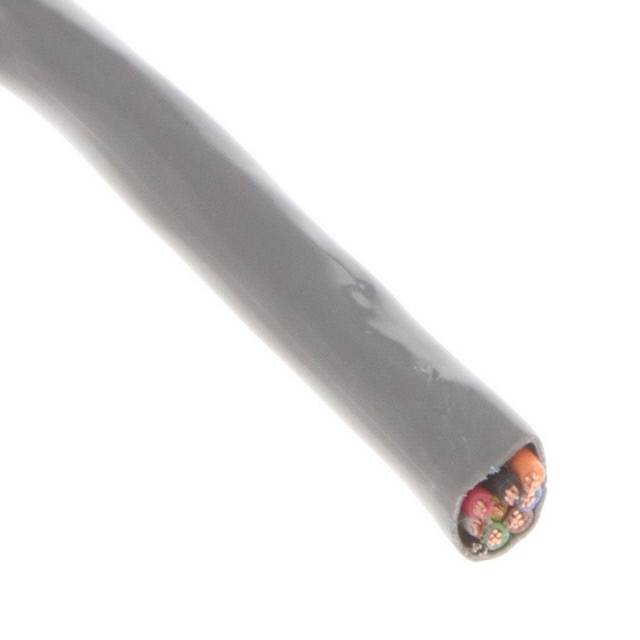

CABLE 8COND 22AWG GRAY SHLD 25'
Deep-Dive with AI
Search across all available documentation for this part.
E2008S.41.10
ActivePrysmian Group
CABLE 8COND 22AWG GRAY SHLD 25'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2008S.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft, 25 ft, 100 ft |
| Length [x] | 7.62 m, 30.5 m |
| Number of Conductors | 8 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.94 | |
| 1 | $ 19.05 | |||
| 1 | $ 36.52 | |||
| 5 | $ 15.59 | |||
| 5 | $ 29.88 | |||
| 5 | $ 61.32 | |||
| 10 | $ 12.12 | |||
| 10 | $ 23.24 | |||
| 10 | $ 47.69 | |||
| Spool | 1 | $ 356.01 | ||
| 2 | $ 338.57 | |||
| 3 | $ 328.71 | |||
| 5 | $ 316.62 | |||
| 7 | $ 308.86 | |||
| 10 | $ 300.81 | |||
| 25 | $ 280.88 | |||
Description
General part information
E2008S Series
8 Conductor Multi-Conductor Cable Gray 22 AWG Foil 25.00' (7.62m)
Documents
Technical documentation and resources
No documents available
