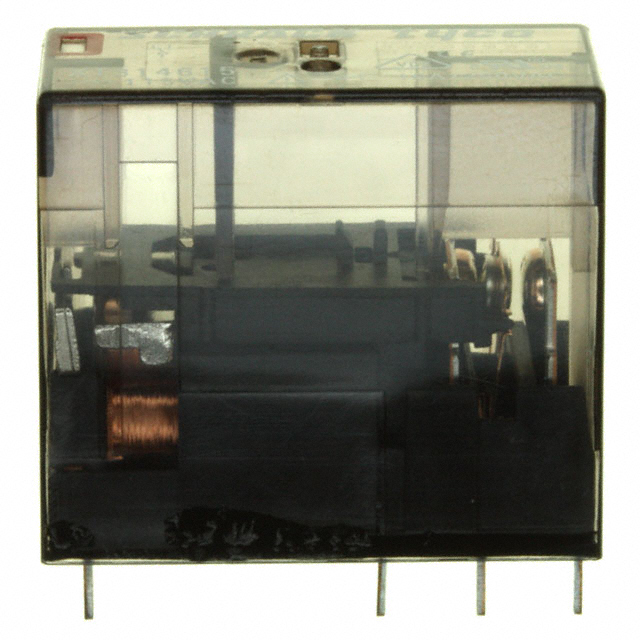

1887101-7

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 115V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Relay Type	Mounting Type	Must Release Voltage	Load - Max Switching	Release Time	Coil Type	Coil Current	Switching Voltage [Max]	Contact Form	Contact Rating (Current)	Must Operate Voltage	Coil Voltage	Coil Insulation	Approval Agency	Coil Resistance
TE Connectivity Potter & Brumfield Relays XT314012	9 ms	Plug In	-40 °C	70 °C	Silver Nickel (AgNi)	General Purpose	Socketable	1.2 VDC	6400 VA	6 ms	Non Latching	16.7 mA	400 VAC	SPDT (1 Form C)	16 A	8.4 VDC	12 VDC	Class F	cURus VDE	360 Ohms
TE Connectivity Potter & Brumfield Relays 1887103-1	8 ms	PC Pin	-40 °C	70 °C	Silver Nickel (AgNi)	General Purpose	Through Hole	34.5 VAC	6400 VA	6 ms	Non Latching	16.7 mA	400 VAC	SPDT (1 Form C)	16 A	184 VAC	230 VAC	Class F	cURus VDE	32500 Ohms
TE Connectivity Potter & Brumfield Relays 1887100-3	9 ms	Plug In	-40 °C	70 °C	Silver Nickel (AgNi)	General Purpose	Socketable	2.4 VDC	6400 VA	6 ms	Non Latching	16.7 mA	400 VAC	SPDT (1 Form C)	16 A	16.8 VDC	24 VDC	Class F	cURus VDE	1440 Ohms
TE Connectivity Potter & Brumfield Relays 1887101-7	9 ms	Plug In	-40 °C	70 °C	Silver Nickel (AgNi)	General Purpose	Socketable	17.3 VAC	6400 VA	6 ms	Non Latching	6.6 mA	400 VAC	SPDT (1 Form C)	16 A	86.3 VAC	115 VAC	Class F	cURus VDE	8.1 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 115VAC Coil Socketable
