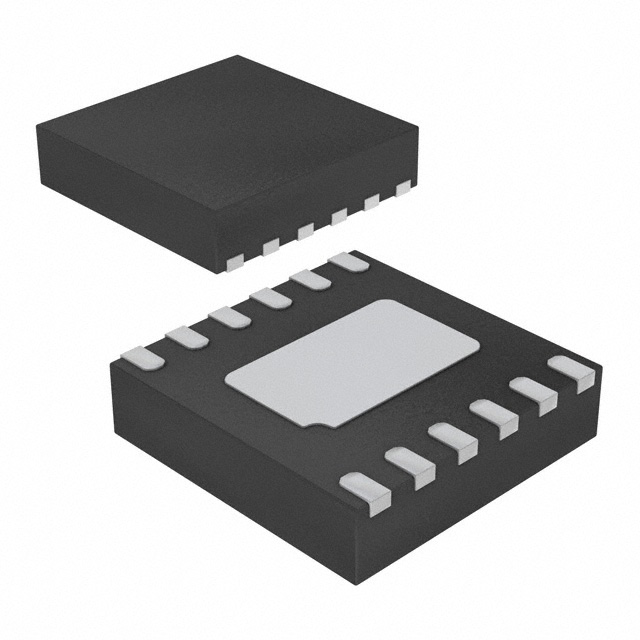

AS1349-BTDT-3312
Obsoleteams-OSRAM USA INC.
IC REG BUCK 1.2V/3.3V DL 12TDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS1349-BTDT-3312
Obsoleteams-OSRAM USA INC.
IC REG BUCK 1.2V/3.3V DL 12TDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1349-BTDT-3312 |
|---|---|
| Current - Output | 1.2 A |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-TDFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Min/Fixed) | 3.3 V, 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1349 Series
Buck Switching Regulator IC Positive Fixed 1.2V, 3.3V 2 Output 1.2A 12-WFDFN Exposed Pad
