906-31-1-12-2-B-0

Active

Wakefield-Vette

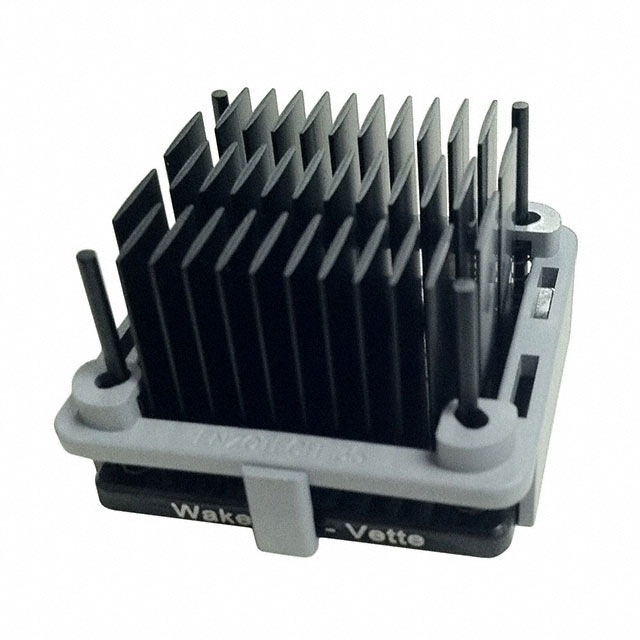

HEATSINK 31X31X12MM ELLIPTICAL

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK 31X31X12MM ELLIPTICAL

Technical Specifications

Parameters and characteristics for this part

Specification	906-31-1-12-2-B-0

Attachment Method	Push Pin
Length	1.22 in
Length	30.99 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	3.5 °C/W
Thermal Resistance @ Natural	10.7 °C/W
Type	Top Mount

Part	Material	Type	Material Finish	Package Cooled	Fin Height	Fin Height	Shape	Length	Length	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Natural
Wakefield-Vette 906-31-1-33-2-B-0	Aluminum	Top Mount	Black Anodized	BGA	1.283 "	32.6 mm	Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.02 °C/W
Wakefield-Vette 906-31-1-21-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.63 °C/W 200 LFM	20.6 mm	0.811 in	9.01 °C/W
Wakefield-Vette 906-31-2-21-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.72 °C/W	20.6 mm	0.811 in	9.01 °C/W
Wakefield-Vette 906-31-2-33-2-B-0	Aluminum	Top Mount	Black Anodized	BGA	1.283 "	32.6 mm	Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.09 °C/W 200 LFM			8.24 °C/W
Wakefield-Vette 906-31-2-12-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	3.4 °C/W			12 °C/W
Wakefield-Vette 906-31-2-23-2-B-0	Aluminum	Top Mount	Black Anodized	BGA	0.892 "	22.65 mm	Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.4 °C/W 200 LFM			9.9 °C/W
Wakefield-Vette 906-31-2-18-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.93 °C/W			9.57 °C/W
Wakefield-Vette 906-31-2-28-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	2.26 °C/W 200 LFM	27.6 mm	1.087 in	8.56 °C/W
Wakefield-Vette 906-31-1-12-2-B-0	Aluminum	Top Mount	Black Anodized	BGA			Pin Fins Square	1.22 in	30.99 mm	Push Pin	3.5 °C/W			10.7 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
