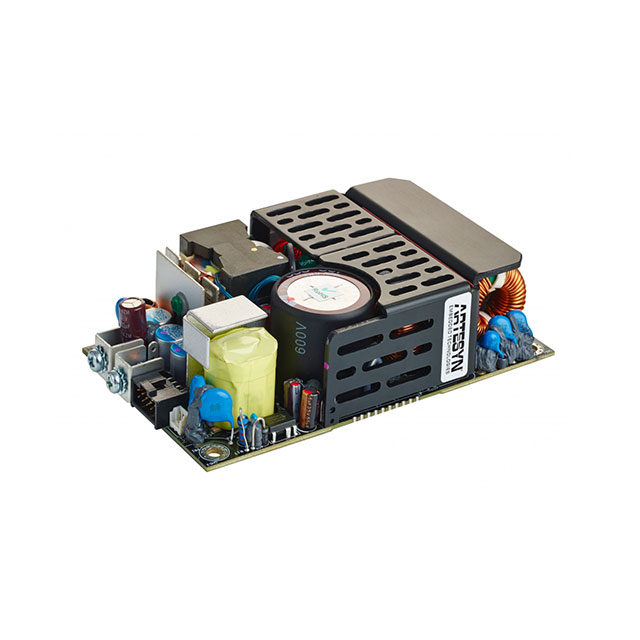

LPS366-M

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 36V 360W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 36V 360W

Technical Specifications

Parameters and characteristics for this part

Specification	LPS366-M

Applications	ITE (Commercial), Medical
Approval Agency	CE, cULus, TUV, CCC, UL, CB
Current - Output 1	6.25 A
Efficiency	93 %
Features	Standby Output, Remote Sense, I2C Interface
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	360 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	115.6 mm
Size / Dimension [z]	4.55 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	36 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Type	Features	Current - Output 1	Minimum Load Required	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Efficiency	Approval Agency	Applications	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
ARTESYN / Advanced Energy LPS366-M	90 VAC	264 VAC	Open Frame	I2C Interface Remote Sense Standby Output	6.25 A		5 in	76.2 mm	115.6 mm	4.55 in	3 "	127 mm	1	360 W	93 %	CB CCC CE cULus TUV UL	ITE (Commercial) Medical	36 V	-20 °C	70 °C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
