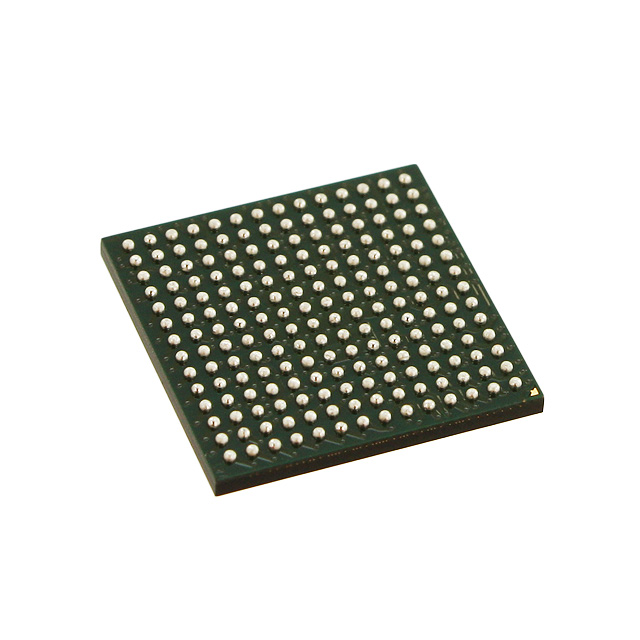

XC56L307VF160

Obsolete

Freescale Semiconductor - NXP

IC DSP 24BIT FIXED POINT 196-BGA

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC DSP 24BIT FIXED POINT 196-BGA

Technical Specifications

Parameters and characteristics for this part

Part	Clock Rate	Non-Volatile Memory	Non-Volatile Memory	Interface	Operating Temperature [custom]	On-Chip RAM	Package / Case	Voltage - Core	Voltage - I/O	Mounting Type	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP XC56309VF100A	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	196-LBGA	3.3 V	3.3 V	Surface Mount	Fixed Point	196-LBGA (15x15)
Freescale Semiconductor - NXP XC56309AG100A	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	144-LQFP	3.3 V	3.3 V	Surface Mount	Fixed Point	144-LQFP (20x20)
Freescale Semiconductor - NXP XC56309VL100AR2	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	196-LBGA	3.3 V	3.3 V	Surface Mount	Fixed Point	196-LBGA (15x15)
Freescale Semiconductor - NXP XC56309VL100A	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	196-LBGA	3.3 V	3.3 V	Surface Mount	Fixed Point	196-LBGA (15x15)
Freescale Semiconductor - NXP XC56309AG100AR2	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	144-LQFP	3.3 V	3.3 V	Surface Mount	Fixed Point	144-LQFP (20x20)
Freescale Semiconductor - NXP XC56309VF100AR2	100 MHz	ROM	576 B	Host Interface SCI SSI	-40 °C 105 °C	24 kB	196-LBGA	3.3 V	3.3 V	Surface Mount	Fixed Point	196-LBGA (15x15)
Freescale Semiconductor - NXP XC56L307VF160	160 MHz	ROM	576 B	Host Interface SCI SSI		576 kB	196-LBGA	1.8 V	3.3 V	Surface Mount	Fixed Point	196-LBGA (15x15)	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC DSP 24BIT FIXED POINT 196-BGA

Technical documentation and resources
