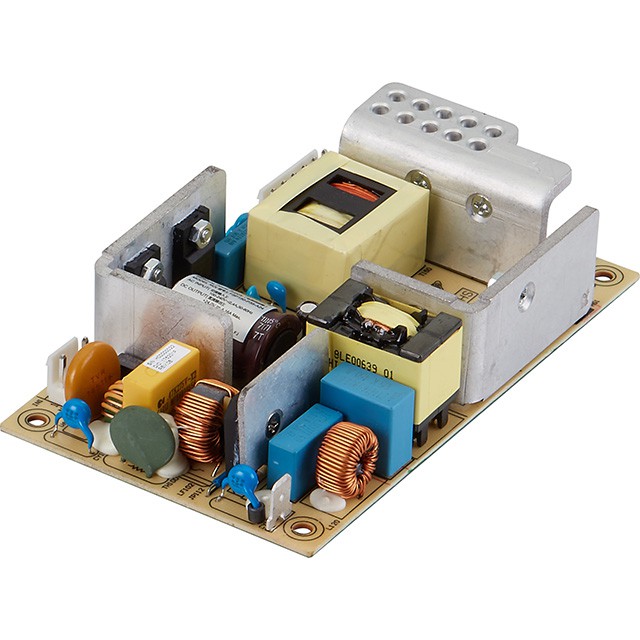

FSP150-P35-A54
ActiveFSP Technology Inc.
AC/DC CONVERTER 54V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP150-P35-A54
ActiveFSP Technology Inc.
AC/DC CONVERTER 54V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP150-P35-A54 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, VCCI, UL, CE, CSA, cURus, CB |
| Current - Output 1 | 2.78 A |
| Efficiency | 92 % |
| Features | PFC, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 54 V |
FSP150 Series
| Part | Approval Agency | Input Connector | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Efficiency | Power (Watts) | Form | Applications | Cord Length | Cord Length | Standard Number | Region Utilized | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Output Connector | Output Connector | No Load Power Consumption [Max] | Mounting Type | Number of Outputs | Voltage - Output 1 | Efficiency | Type | Minimum Load Required | Current - Output 1 | Features | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FSP Technology Inc. | CB CCC CE cULus FCC GS TUV VCCI | IEC 320-C14 | 19 V | 90 VAC | 264 VAC | 7.89 A | 70 °C | 0 °C | Cord | CoC Tier 2 Level VI | 150 W | Desktop (Class I) | ITE (Commercial) | 70.9 in | 1.8 m | 60950-1 62368-1 | International | 5.96 " | 75.6 mm | 1 " | 2.98 " | 25.4 mm | 151.3 mm | 4 Pin | Power DIN | 150 mW | |||||||||
FSP Technology Inc. | CB CE CSA cURus FCC UL VCCI | 90 VAC | 264 VAC | 70 °C | -20 °C | 150 W | ITE (Commercial) | 60950-1 62368-1 | 5 in | 76.2 mm | 1.06 in | 3 " | 27 mm | 127 mm | Chassis Mount | 1 | 54 V | 92 % | Open Frame | 2.78 A | PFC Universal Input | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.60 | |
| 5 | $ 33.74 | |||
| 10 | $ 32.70 | |||
| 25 | $ 31.31 | |||
| 50 | $ 30.28 | |||
| 100 | $ 29.06 | |||
Description
General part information
FSP150 Series
Open Frame AC DC Converters 1 Output 54V 90 ~ 264 VAC Input
