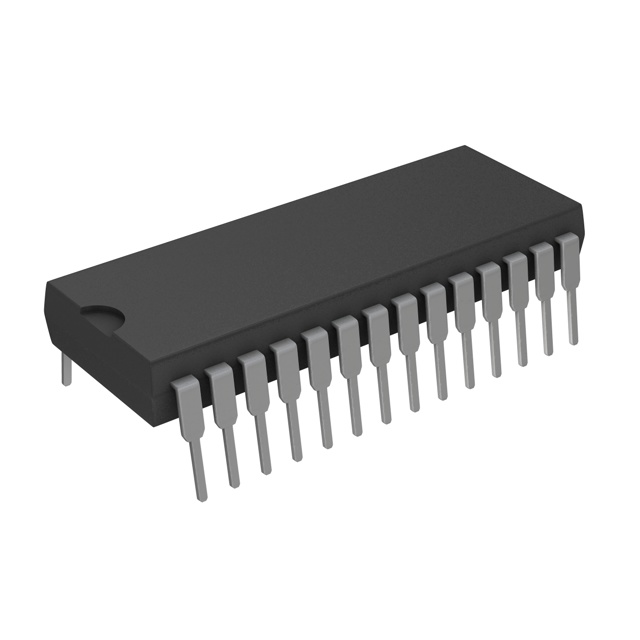

UCC3626N

Obsolete

Texas Instruments

IC MOTOR DRIVER 11V-14.5V 28DIP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC MOTOR DRIVER 11V-14.5V 28DIP

Technical Specifications

Parameters and characteristics for this part

Specification	UCC3626N

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Configuration	Pre-Driver - Half Bridge (3)
Package / Case	28-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Supplier Device Package	28-PDIP
Voltage - Supply [Max]	14.5 V
Voltage - Supply [Min]	11 V

Part	Package / Case	Package / Case	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Output Configuration	Interface	Operating Temperature [Max]	Applications	Function	Motor Type - AC, DC	Package / Case [x]	Package / Case
Texas Instruments UCC3626PW	28-TSSOP	0.173 in	4.4 mm	11 V	14.5 V	Surface Mount	28-TSSOP	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)
Texas Instruments UCC3626PWTRG4	28-TSSOP	0.173 in	4.4 mm	11 V	14.5 V	Surface Mount	28-TSSOP	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)
Texas Instruments UCC3626PWTR	28-TSSOP	0.173 in	4.4 mm	11 V	14.5 V	Surface Mount	28-TSSOP	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)
Texas Instruments UCC3626DW	28-SOIC		7.5 mm	11 V	14.5 V	Surface Mount	28-SOIC	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)	0.295 in
Texas Instruments UCC3626N	28-DIP	0.6 in		11 V	14.5 V	Through Hole	28-PDIP	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)		15.24 mm
Texas Instruments UCC3626DWTR	28-SOIC		7.5 mm	11 V	14.5 V	Surface Mount	28-SOIC	Pre-Driver - Half Bridge (3)	PWM	70 °C	General Purpose	Controller - Commutation Direction Management	Brushless DC (BLDC)	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver PWM 28-PDIP

Technical documentation and resources
