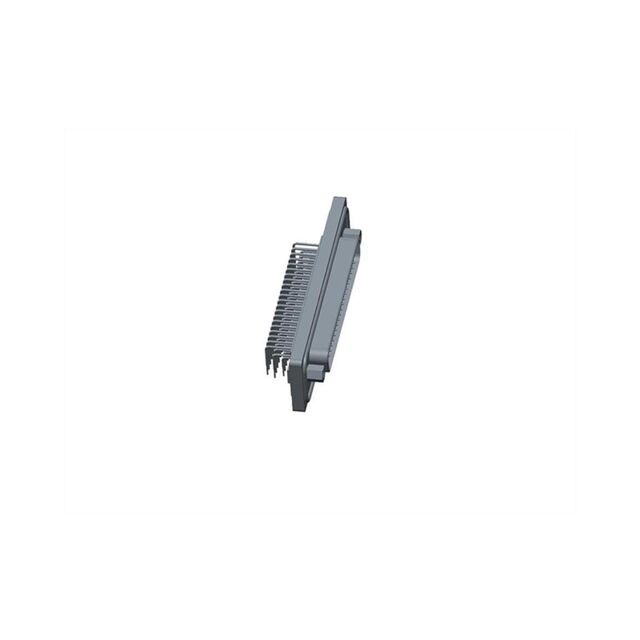

HDB-62PMMP-SR7001

Active

Amphenol LTW

CONN D-SUB HD PLUG 62P R/A SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD PLUG 62P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-62PMMP-SR7001

Backset Spacing	5.6 mm
Backset Spacing	0.22 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

Part	Connector Style	Mounting Type	Number of Rows	Number of Positions	Shell Size, Connector Layout	Termination	Contact Finish	Connector Type	Contact Type	Features	Flange Feature	Current Rating (Amps)	Color	Shell Material, Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Ingress Protection	Backset Spacing	Backset Spacing
Amphenol LTW HDB-62PMMP-SL7001	D-Sub High Density	Panel Mount Through Hole	3	62	4	Solder	Gold	Male Pins Plug	Signal	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2 A	Black	Nickel Plated Steel	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Copper Alloy	IP67 - Dust Tight Waterproof
Amphenol LTW HDB-62PMMP-SR7001	D-Sub High Density	Panel Mount Right Angle Through Hole	3	62	4	Solder	Gold	Male Pins Plug	Signal	Shielded	Female Screwlock (4-40) Mating Side	2 A	Black	Nickel Plated Steel	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Copper Alloy	IP67 - Dust Tight Waterproof	5.6 mm	0.22 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 35.82

General part information

62 Position D-Sub, High Density Plug, Male Pins Connector
