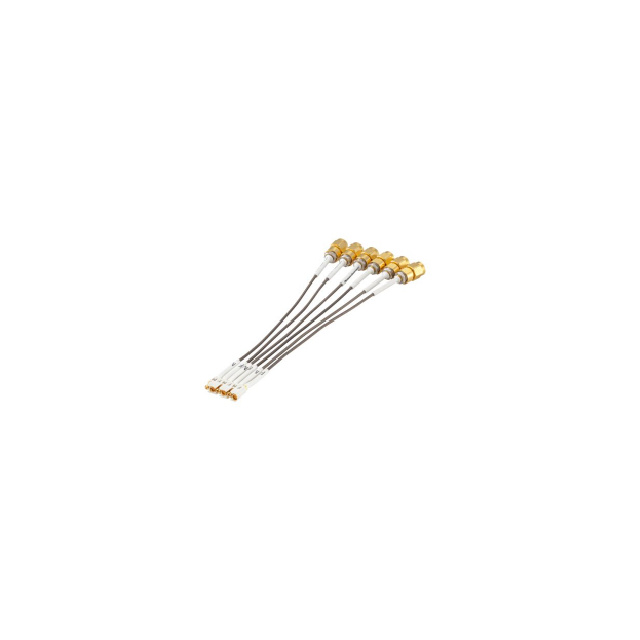

L99-815-30G

Active

Rosenberger

CBL ASY MIN COAX-SMA J-P 11.811"

Search across all available documentation for this part.

Active

Rosenberger

CBL ASY MIN COAX-SMA J-P 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	L99-815-30G

1st Connector	Mini Coaxial Plug (3), Mini Coaxial Jack (3)
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male, Female
2nd Connector	SMA Plug (6)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RTK 047
Frequency - Max [Max]	20 GHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	Mini Coaxial to SMA

Part	1st Connector Mounting Type	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	2nd Contact Gender	Frequency - Max [Max]	1st Connector	1st Contact Gender	Cable Type	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Style
Rosenberger L99-815-30F	Free Hanging (In-Line)	300 mm	11.811 in	-40 °C	115 °C	Male	20 GHz	Mini Coaxial Jack Mini Coaxial Plug	Female Male	RTK 047	SMA Plug (2)	Free Hanging (In-Line)	50 Ohms	Mini Coaxial to SMA
Rosenberger L99-815-30G	Free Hanging (In-Line)	300 mm	11.811 in	-40 °C	115 °C	Male	20 GHz	Mini Coaxial Jack (3) Mini Coaxial Plug (3)	Female Male	RTK 047	SMA Plug (6)	Free Hanging (In-Line)	50 Ohms	Mini Coaxial to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial Mini Coaxial to SMA RTK 047 11.811" (300.00mm)

Technical documentation and resources

No documents available
