R-CX-1102-72

Active

Remington Industries

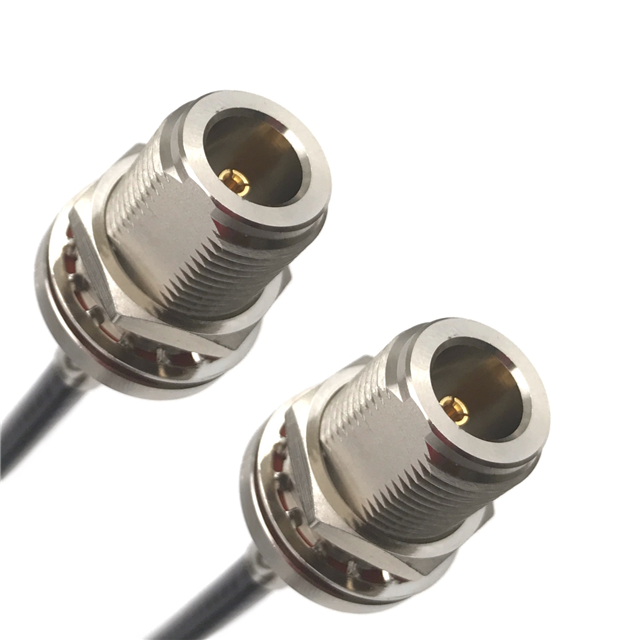

CBL ASSY NTYPE JACK TO JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R-CX-1102-72

Active

Remington Industries

CBL ASSY NTYPE JACK TO JACK 6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R-CX-1102-72

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58C
Color	Black
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	N-Type to N-Type

R-CX-110 Series

Part	2nd Connector	Overall Impedance	1st Contact Gender	2nd Contact Gender	1st Connector	2nd Connector Mounting Type	Features	Cable Type	2nd Connector Mounting Feature	Style	Color	Frequency - Max [Max]	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length	1st Connector Mounting Feature
Remington Industries R-CX-1101-144	N-Type Jack	50 Ohms	Male	Female	SMA Plug	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	SMA to N-Type	Black	1 GHz	Free Hanging (In-Line)	-40 °C	80 C
Remington Industries R-CX-1100-96	SMA Plug	50 Ohms	Male	Male	SMA Plug	Free Hanging (In-Line)	Shielded	RG-58C		SMA to SMA	Black	5 GHz	Free Hanging (In-Line)	-40 °C	80 C	2.4 m	8 '	96 "
Remington Industries R-CX-1102-72	N-Type Jack	50 Ohms	Female	Female	N-Type Jack	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	N-Type to N-Type	Black	1 GHz	Panel Mount	-40 °C	80 C	1.8 m	6 ft	72 in	Bulkhead - Front Side Nut
Remington Industries R-CX-1100-24	SMA Plug	50 Ohms	Male	Male	SMA Plug	Free Hanging (In-Line)	Shielded	RG-58C		SMA to SMA	Black	5 GHz	Free Hanging (In-Line)	-40 °C	80 C	609.6 mm		24 "
Remington Industries R-CX-1101-180	N-Type Jack	50 Ohms	Male	Female	SMA Plug	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	SMA to N-Type	Black	1 GHz	Free Hanging (In-Line)	-40 °C	80 C	4.6 m	5 yd	15 ft
Remington Industries R-CX-1101-48	N-Type Jack	50 Ohms	Male	Female	SMA Plug	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	SMA to N-Type	Black	1 GHz	Free Hanging (In-Line)	-40 °C	80 C	1200 mm	4 ft	48 in
Remington Industries R-CX-1102-36	N-Type Jack	50 Ohms	Female	Female	N-Type Jack	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	N-Type to N-Type	Black	1 GHz	Panel Mount	-40 °C	80 C	91.44 cm		36 in	Bulkhead - Front Side Nut
Remington Industries R-CX-1101-36	N-Type Jack	50 Ohms	Male	Female	SMA Plug	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	SMA to N-Type	Black	1 GHz	Free Hanging (In-Line)	-40 °C	80 C	91.44 cm		36 in
Remington Industries R-CX-1102-120	N-Type Jack	50 Ohms	Female	Female	N-Type Jack	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	N-Type to N-Type	Black	1 GHz	Panel Mount	-40 °C	80 C	3 m	10 '	10 ft	Bulkhead - Front Side Nut
Remington Industries R-CX-1101-60	N-Type Jack	50 Ohms	Male	Female	SMA Plug	Panel Mount	Shielded	RG-58C	Bulkhead - Front Side Nut	SMA to N-Type	Black	1 GHz	Free Hanging (In-Line)	-40 °C	80 C	1.5 m	5 ft	5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.23
		25	$ 90.47
		50	$ 85.71
		100	$ 80.95

Description

General part information

R-CX-110 Series

Cable Assembly Coaxial N-Type to N-Type RG-58C 72.0" (1.8m) 6.0'
