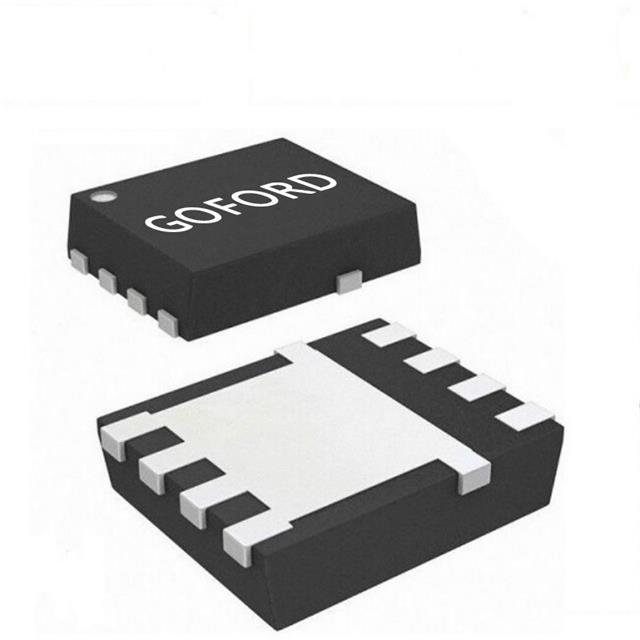

G18P03D3
ActiveGoford Semiconductor
P30V,RD(MAX)<10M@-10V,RD(MAX)<15
Deep-Dive with AI
Search across all available documentation for this part.
G18P03D3
ActiveGoford Semiconductor
P30V,RD(MAX)<10M@-10V,RD(MAX)<15
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G18P03D3 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 50 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 45 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 3074 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerVDFN |
| Power Dissipation (Max) | 60 W |
| Rds On (Max) @ Id, Vgs | 10 mOhm |
| Supplier Device Package | 8-DFN (3.15x3.05) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.69 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 3000 | $ 0.30 | ||
| 5000 | $ 0.20 | |||
| 6000 | $ 0.29 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.19 | |||
| 30000 | $ 0.26 | |||
| 30000 | $ 0.17 | |||
Description
General part information
G18P03D3
P-Channel 30 V 50A (Tc) 60W (Tc) Surface Mount 8-DFN (3.15x3.05)
