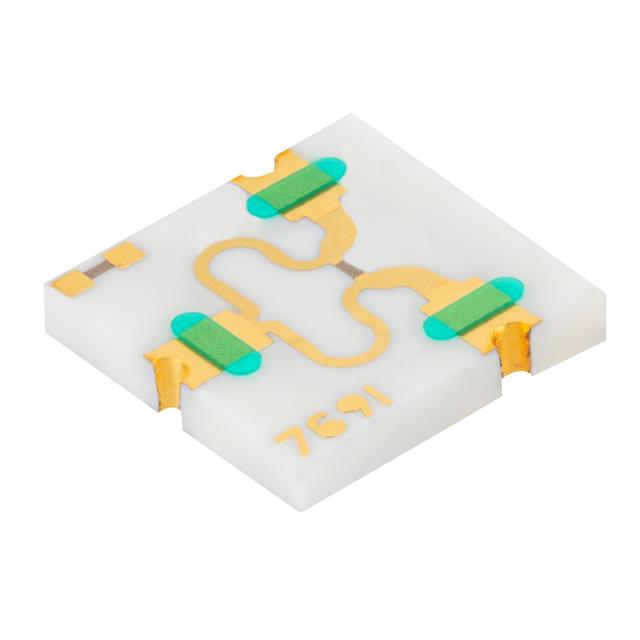

PDW07691-T
ActiveKnowles Johanson Manufacturing
18-20GHZ 2-WAY SMD WILKINSON POW
Deep-Dive with AI
Search across all available documentation for this part.
PDW07691-T
ActiveKnowles Johanson Manufacturing
18-20GHZ 2-WAY SMD WILKINSON POW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDW07691-T |
|---|---|
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 18 GHz |
| Insertion Loss | 0.5 dB |
| Package / Case | Module |
| Size / Dimension [x] | 2.54 mm |
| Size / Dimension [x] | 2.54 mm |
| Size / Dimension [y] | 2.54 mm |
| Size / Dimension [y] | 2.54 mm |
| Size / Dimension [z] | 0.38 mm |
| Size / Dimension [z] | 0.015 in |
| Specifications [custom] | 15 dB |
| Specifications [Max] [custom] | 5 ° |
| Specifications [Min] [custom] | 15 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 17.11 | |
| 10 | $ 13.96 | |||
| 25 | $ 12.87 | |||
| 50 | $ 12.11 | |||
| 100 | $ 11.38 | |||
| 250 | $ 10.49 | |||
| 500 | $ 10.13 | |||
| Digi-Reel® | 1 | $ 17.11 | ||
| 10 | $ 13.96 | |||
| 25 | $ 12.87 | |||
| 50 | $ 12.11 | |||
| 100 | $ 11.38 | |||
| 250 | $ 10.49 | |||
| 500 | $ 10.13 | |||
| Tape & Reel (TR) | 2200 | $ 7.34 | ||
Description
General part information
PDW07691 Series
RF Power Divider 18 GHz ~ 20 GHz Isolation (Min) 15dB, 15dB Return Loss, 5° Imbalance (Max) Module
Documents
Technical documentation and resources
No documents available
