MURF20040

Obsolete

GeneSiC Semiconductor

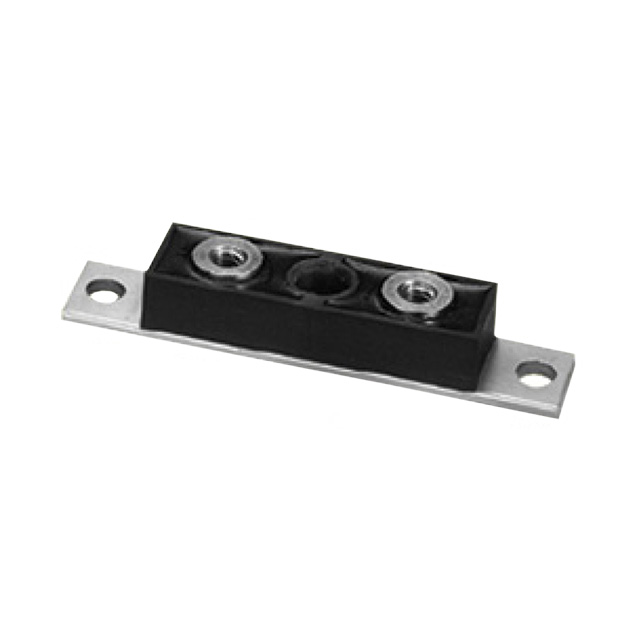

DIODE MOD GP 400V 100A TO244AB

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

DIODE MOD GP 400V 100A TO244AB

Technical Specifications

Parameters and characteristics for this part

Specification	MURF20040

Current - Average Rectified (Io) (per Diode)	100 A
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-244AB
Reverse Recovery Time (trr)	90 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-244AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Current - Average Rectified (Io) (per Diode)	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Speed	Package / Case	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package
GeneSiC Semiconductor MURF20060	100 A	75 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Cathode	1.7 V	Chassis Mount	600 V	TO-244AB
GeneSiC Semiconductor MURF20020	100 A	75 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Cathode	1.3 V	Chassis Mount	200 V	TO-244
GeneSiC Semiconductor MURF20010R	100 A	75 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Anode	1.3 V	Chassis Mount	100 V	TO-244
GeneSiC Semiconductor MURF20040R	100 A	90 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Anode	1.3 V	Chassis Mount	400 V	TO-244AB
GeneSiC Semiconductor MURF20020R	100 A	75 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Anode	1.3 V	Chassis Mount	200 V	TO-244
GeneSiC Semiconductor MURF20040	100 A	90 ns	150 °C	-55 °C	Standard	200 mA 500 ns	TO-244AB	1 Pair Common Cathode	1.3 V	Chassis Mount	400 V	TO-244AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 400 V 100A Chassis Mount TO-244AB
