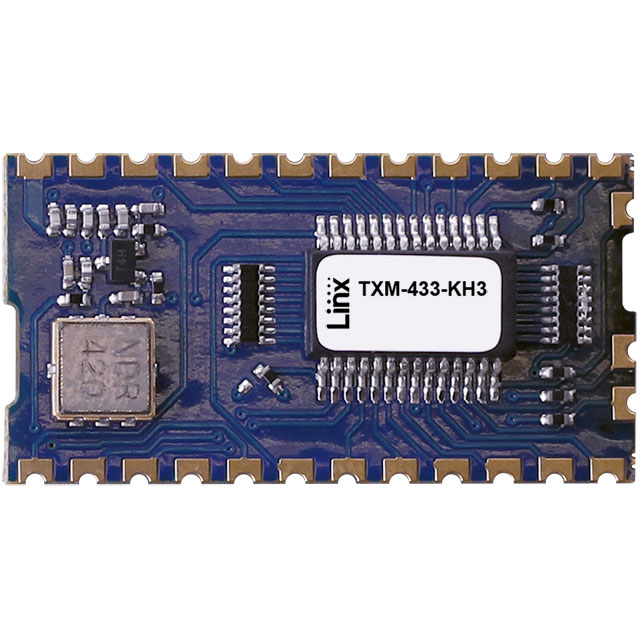

TXM-433-KH3

Active

TE Connectivity Linx

RF TX IC ASK 433MHZ 27SMD MOD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TX IC ASK 433MHZ 27SMD MOD

Technical Specifications

Parameters and characteristics for this part

Specification	TXM-433-KH3

Antenna Connector	Castellation
Applications	Remote Control, RKE, Home/Industrial Automation, Lighting
Current - Transmitting	2.7 mA
Data Interface	Parallel
Features	Built-in Remote Control Encoder
Frequency	433 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Package / Case	27-SMD Module
Power - Output	4 dBm
Supplier Device Package	Module
Voltage - Supply [Max]	5.2 V
Voltage - Supply [Min]	2.7 V

Part	Mounting Type	Supplier Device Package	Package / Case	Modulation or Protocol	Power - Output [Max]	Power - Output [Min]	Data Interface	Data Rate (Max) [Max]	Antenna Connector	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Power - Output	Features
TE Connectivity Linx TXM-433-LR	Surface Mount	Module	8-SMD Module	ASK OOK	4 dBm	-4 dBm	Serial	10 kbps	Castellation	Home/Industrial Automation Lighting Remote Control RKE Security	2.1 V	3.6 V	8.5 mA	85 °C	-40 °C	433 MHz
TE Connectivity Linx TXM-433-KH3	Surface Mount	Module	27-SMD Module	ASK OOK			Parallel		Castellation	Home/Industrial Automation Lighting Remote Control RKE	2.7 V	5.2 V	2.7 mA	70 °C	-30 ░C	433 MHz	4 dBm	Built-in Remote Control Encoder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transmitter ASK, OOK 433MHz 4dBm Castellation Antenna 27-SMD Module
