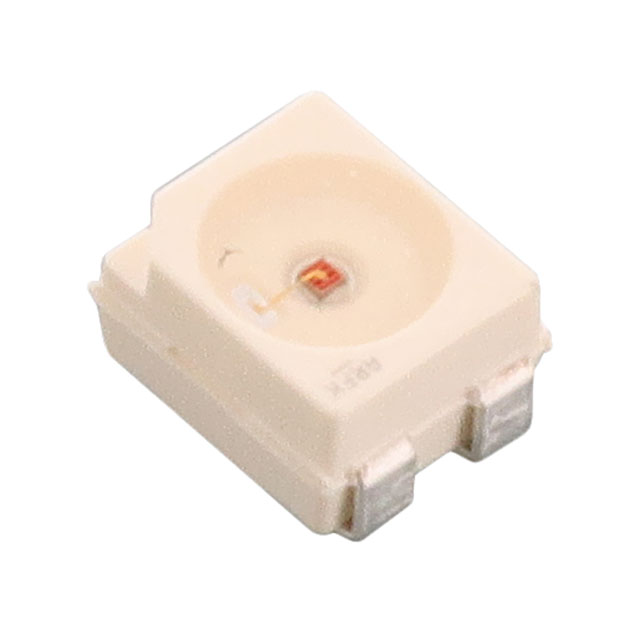

LO E67F-BADA-24-1-50-R18-Z

LTB

ams-OSRAM USA INC.

LED POWER TOPLED ORG 605NM 4PLCC

Search across all available documentation for this part.

LTB

ams-OSRAM USA INC.

LED POWER TOPLED ORG 605NM 4PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	LO E67F-BADA-24-1-50-R18-Z

Current - Max [Max]	70 mA
Current - Test	50 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	102 lm/W
Luminous Flux @ Current/Temperature	11 lm
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Thermal Resistance of Package	300 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.15 V
Wavelength [Max]	609 nm
Wavelength [Min]	600 nm

Part	Wavelength [Min]	Wavelength [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Mounting Type	Current - Test	Supplier Device Package	Package / Case	Thermal Resistance of Package	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. LO E67F-BADA-24-1-50-R18-Z	600 nm	609 nm	3.2 mm	0.126 in	0.11 in	2.8 mm	2.15 V	102 lm/W	120 °	70 mA	Surface Mount	50 mA	4-PLCC	4-PLCC	300 °C/W	11 lm	2.1 mm	0.083 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Power TOPLED® Orange 605nm (600nm ~ 609nm) 4-PLCC
