920-0171-01

Active

Schmartboard, Inc.

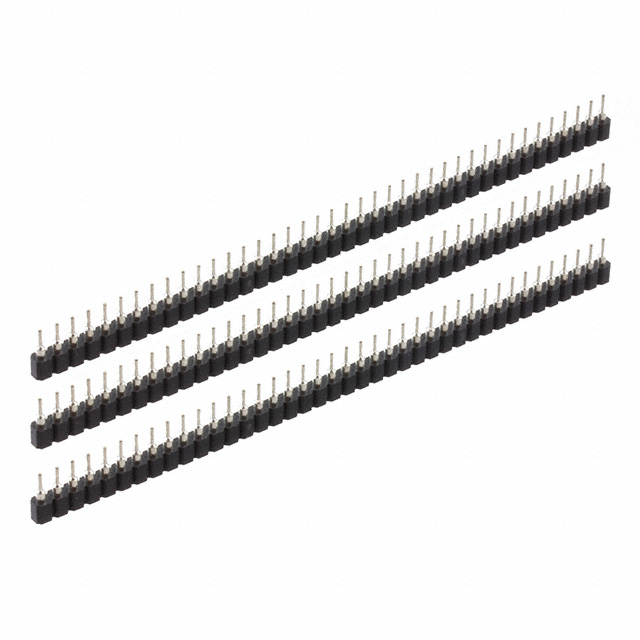

CONN HDR 40POS 0.1 GOLD PCB 3PC

Search across all available documentation for this part.

Active

Schmartboard, Inc.

CONN HDR 40POS 0.1 GOLD PCB 3PC

Technical Specifications

Parameters and characteristics for this part

Specification	920-0171-01

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.118 in
Insulation Height	3 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Contact Finish - Post	Number of Rows	Current Rating (Amps)	Contact Finish - Mating	Contact Type	Contact Shape	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Termination
Schmartboard, Inc. 920-0171-01	Gold	1	3 A	Gold	Female Socket	Circular	Polybutylene Terephthalate (PBT)	0.177 in	4.5 mm	Brass	-40 °C	105 ░C	Push-Pull	Through Hole	Breakaway Header	0.118 in	3 mm	All	40	UL94 V-0	Black	0.1 in	2.54 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.00

General part information

40 Position Header, Breakaway Connector 0.100" (2.54mm) Through Hole Gold
