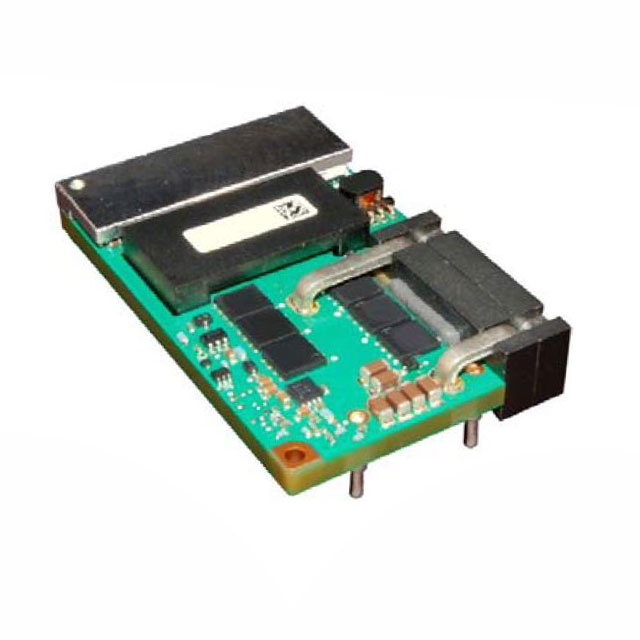

QBVE060A0S10R441-PZ
ActiveOmniOn Power™
DC DC CONVERTER 10.4V 625W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBVE060A0S10R441-PZ
ActiveOmniOn Power™
DC DC CONVERTER 10.4V 625W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBVE060A0S10R441-PZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 60 A |
| Efficiency | 97 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -5 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 625 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 10.9 mm |
| Size / Dimension [z] | 0.43 " |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 56 V |
| Voltage - Input (Min) [Min] | 45 V |
| Voltage - Isolation | 750 V |
| Voltage - Output 1 | 10.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 120 | $ 86.08 | |
Description
General part information
QBVE060 Series
Intermediate Bus Converter DC DC Converter 1 Output 10.4V 60A 45V - 56V Input
