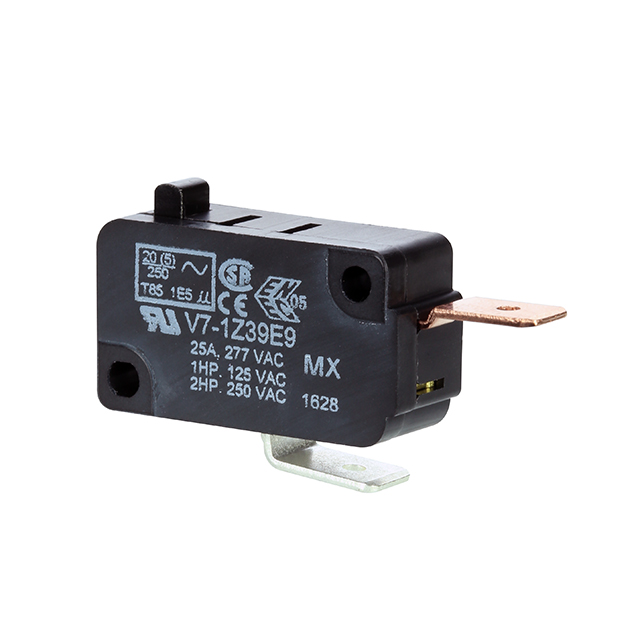

V7-1Z39E9

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 25A 277V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 25A 277V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Operating Force	Operating Position	Operating Position	Pretravel	Pretravel	Current Rating (Amps)	Actuator Type	Overtravel	Overtravel	Release Force	Termination Style	Differential Travel	Differential Travel	Voltage Rating - AC	Mounting Type
Honeywell Sensing and Productivity Solutions V7-1Z39E9	SPST-NC	On-Mom	10000000 Cycles	85 °C	-40 °C	100000 Cycles	225 gf	0.579 in	14.7 mm	0.047 in	1.2 mm	25 A	Round (Pin Plunger)	1.27 mm	0.05 in	20 gf	Quick Connect - 0.250" (6.3mm)	0.25 mm	0.01 in	277 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Chassis Mount
