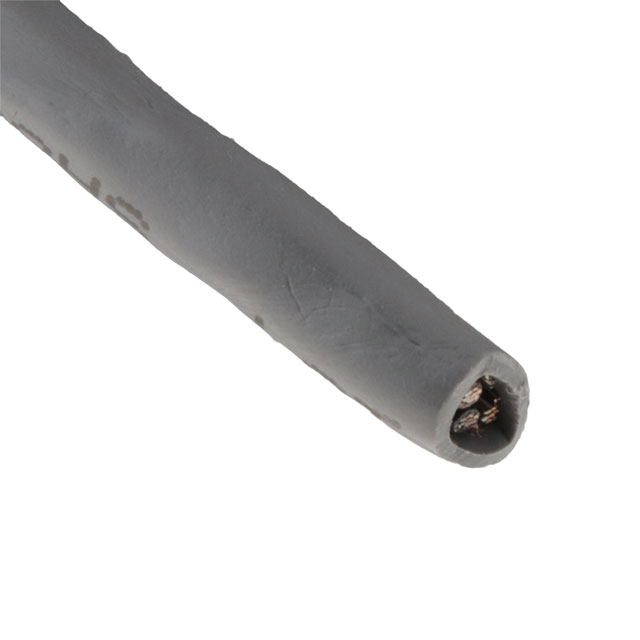

M5333 SL005

Active

ALPHA WIRE

CABLE 2COND 22AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M5333 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Material	Number of Conductors	Shield Type	Ratings	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket Color	Shield Coverage	Features	Voltage	Jacket (Insulation) Material	Wire Gauge
ALPHA WIRE M5333 SL005	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	2	Foil	UL Style 2464	30.5 m	100 ft	Multi-Conductor	4.9 mm	0.193 in	28	7	Aluminum	Slate	100 %	Drain Wire Rip Cord	300 V	Poly-Vinyl Chloride (PVC)	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.06

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Foil 100.0' (30.5m)
