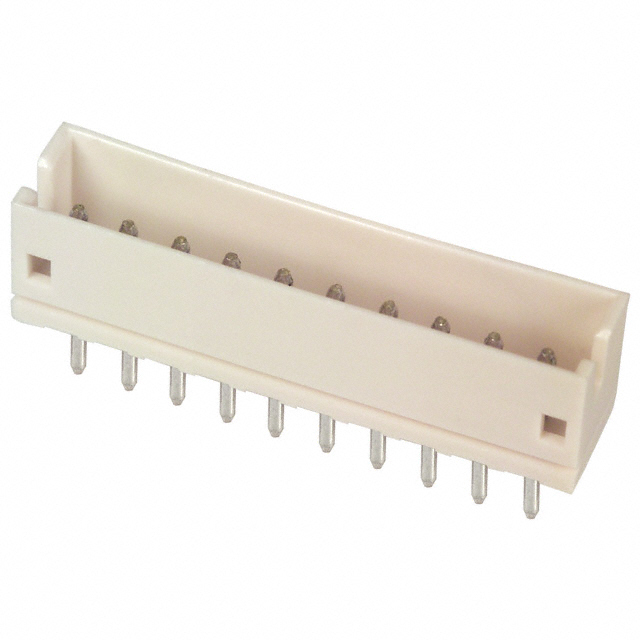

B10B-ZR
ActiveJST Sales America Inc.
CONN HEADER VERT 10POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
B10B-ZR
ActiveJST Sales America Inc.
CONN HEADER VERT 10POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B10B-ZR |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating [custom] | 2.4 mm |
| Contact Length - Mating [custom] | 0.094 in |
| Contact Length - Post [x] | 0.106 in |
| Contact Length - Post [x] | 2.69 mm |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height | 0.177 in |
| Insulation Height | 4.5 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated Stacking Heights | 5.6 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 0.256 in |
| Overall Contact Length | 6.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
Description
General part information
B10B-ZR Series
Connector Header Through Hole 10 position 0.059" (1.50mm)
