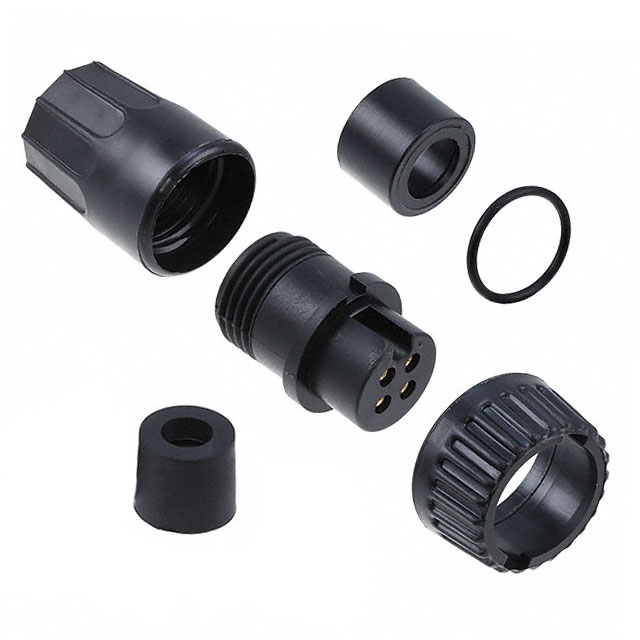

3282-4SG-318

Active

Conxall/Switchcraft

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-4SG-318

Active

Conxall/Switchcraft

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-4SG-318

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-4S Series

Part	Ingress Protection	Orientation	Color	Backshell Material, Plating	Number of Positions	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Primary Material	Connector Type	Fastening Type	Mounting Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Contact Material	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-4SG-528	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold	7.37 mm	7.11 mm	0.29 in	0.28 in	Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell Cable Clamp
Conxall/Switchcraft 3282-4SG-518	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold					Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell Cable Clamp	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-4SG-328	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold	7.37 mm	7.11 mm	0.29 in	0.28 in	Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell
Conxall/Switchcraft 3282-4SG-330	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold		7.62 mm	0.32 in	0.3 in	Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell					8.13 mm
Conxall/Switchcraft 3282-4SG-515	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold					Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell Cable Clamp						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-4SG-3DC	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold					Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell
Conxall/Switchcraft 3282-4SG-530	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold		7.62 mm	0.32 in	0.3 in	Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell Cable Clamp					8.13 mm
Conxall/Switchcraft 3282-4SG-318	Weathertight	Keyed	Black	Nylon Polyamide (PA)	4	Gold					Plastic	Female Sockets Plug	Bayonet Lock	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	5.6 A	600 V	Brass	Backshell	4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.32
		10	$ 9.15
		25	$ 8.80
		50	$ 8.45
		100	$ 8.26

Description

General part information

3282-4S Series

4 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet
