C091 11H005 002 4

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 5POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11H005 002 4

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Type	For Male Pins

Part	Note	Shielding	Features	Shell Finish	Shell Material	Orientation	Shell Size - Insert	Contact Shape	Mounting Type	Housing Color	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Type	Includes	Material Flammability Rating	Type	Contact Size
Amphenol Tuchel Industrial C091 11H005 000 2	Contacts Not Included	Shielded	Backshell Cable Clamp Coupling Nut	Nickel	Die Cast	Keyed	M16-5	Circular	Free Hanging (In-Line)	Silver	Plug Housing	Thermoplastic	100 °C	-40 °C	IP65 IP67 IP69K	Crimp	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers	UL94 V-0	For Male Pins	1.5 mm
Amphenol Tuchel Industrial C091 11H005 002 4	Contacts Not Included	Shielded		Nickel	Zinc Die Cast	Keyed	M16-5	Circular	Free Hanging (In-Line)	Silver	Plug Housing	Thermoplastic	100 °C	-40 °C	IP68 IP69K	Crimp		UL94 V-0	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 21.00

General part information

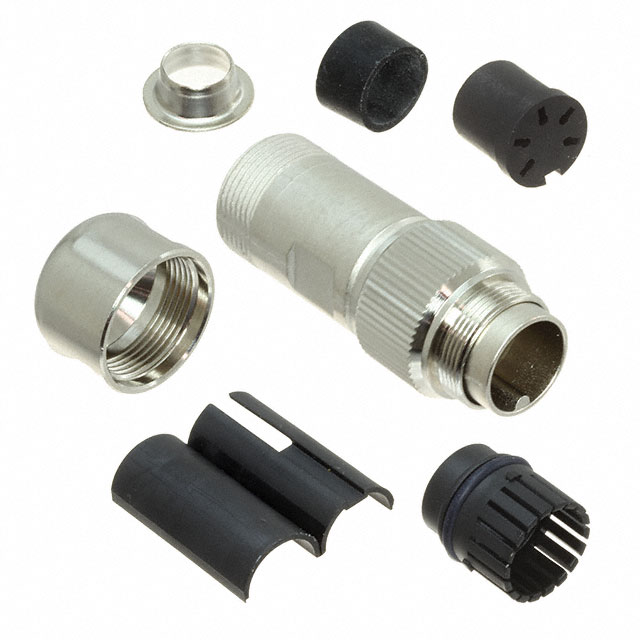

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, Strain Relief
