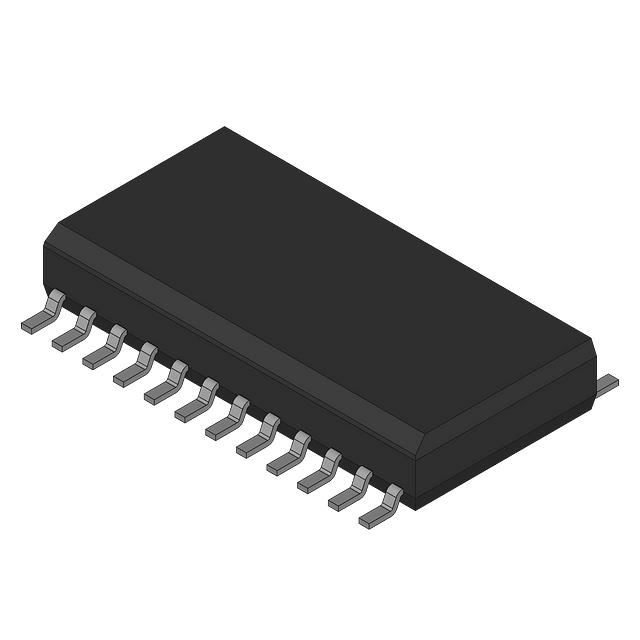

SN74LS646SG
ActiveAdvanced Micro Devices
IC TXRX NON-INVERT 24SOIC
Deep-Dive with AI
Search across all available documentation for this part.
SN74LS646SG
ActiveAdvanced Micro Devices
IC TXRX NON-INVERT 24SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SN74LS646SG |
|---|---|
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Output Type | 3-State |
| Package / Case | 24-SOIC |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 in |
| Supplier Device Package | 24-SOIC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 51 | $ 5.90 | |
Description
General part information
74LS646 Series
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-SOIC
Documents
Technical documentation and resources
No documents available
